3-15KW On Grid Solar System Three Phase
Type: On Grid Three Phase With Growatt Inverter
Max. Power: 3-15KW
Output Voltage: 220V/380V, 230V/400V (340-440V)
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Description
As a professional solar power system supplier, HBOWA provides off-grid, on-grid, and hybrid solar systems with free design to support your solar business.

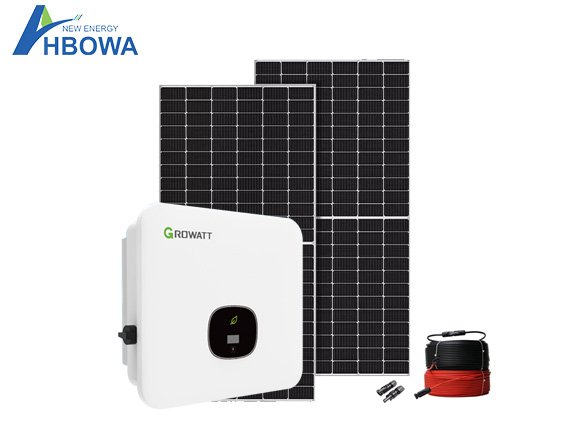

HBOWA on-grid solar system consists of 550W mono solar panels, an on-grid three-phase Growatt inverter, and system accessories. We have certificates such as CE, TUV, UL, ISO, etc. to ensure high quality and performance. OEM and ODM services are supported.
We not only produce our own brand solar panels, but also provide other brand solar products, such as Jinko, JA, Longi, Canadian, Trina, tier 1 solar panels, and Growatt, Deye, and GoodWe inverters.
For more detailed information, feel free to contact our team directly.
Technical Data
- Components
- Solar Panel

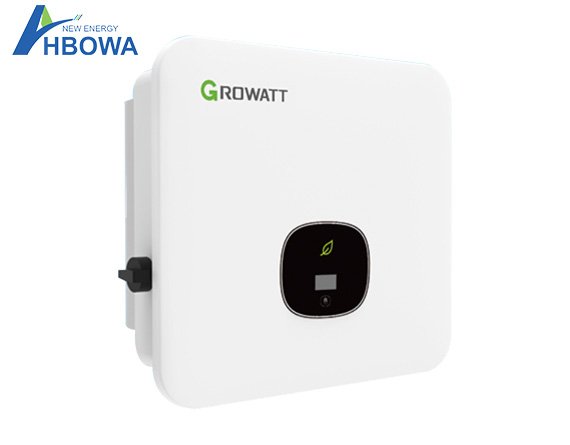

- Growatt On grid Inverter
| Model | 3000W-On | 5000W-On | 8000W-On | 10000W-On | 15000W-On |
| Bifacial solar panel 550W/41.95V | 6 pieces | 10 pieces | 15 pieces | 18 pieces | 28 pieces |
| Growatt Inverter | MOD 3000TL3-X*1 | MOD 5000TL3-X*1 | MOD 8000TL3-X*1 | MOD 10KTL3-X*1 | MOD 15KTL3-X*1 |
| DC Combiner Box | Customized According to Solar System Configuration | ||||
| PV Cable 4 mm2 | 200 meter | 200 meter | 200 meter | 200 meter | 200 meter |
| Mounting Brackets | 1 set | ||||
| MC4 Connector | 10 pairs | 10 pairs | 10 pairs | 20 pairs | 20 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Nominal power | 3000W | 5000W | 8000W | 10000W | 15000W |
| MPP voltage range | 140V-1000V | ||||
| Max. Input current Per MPP Tracker | 13A | 13/26A | |||
| Number of MPPT | 2 | ||||
| No. of PV strings per MPP tracker | 1 | ||||
| Max. PV Power ( W ) | 4500W | 7500W | 12000W | 15000W | 22500W |
| Max Efficiency | 98.30% | 98.30% | 98.60% | 98.60% | 98.60% |
| Nominal Output Voltage ( V ) | 220V/380V, 230V/400V (340-440V) | ||||
| Communication | RS485/USB/(Wifi/GPRS/RF/LAN optional) | ||||
| Weight | 12.5kg | 14kg | 14kg | 16kg | |
| Dimensions | 425/387/147mm | 425/387/178mm | |||
| Warranty | 5 years(10 years optional) | ||||
Advantages
Grid-Tied Systems
The electricity generated by the on-grid system can be used for residential and commercial use, while the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. The utility grid is a virtual energy storage system that stores excess electricity generated by solar panels, reduces electricity bills, and also obtains additional subsidies.
Packaging Service
All HBOWA solar system products are in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.
