580W-600W LESSO Solar Panels By Container 720 pcs
Model:580C-600C(HBD)72(182)
Cell: 182mm N-TOPCon Mono Cell(Half Cell)
Power Range: 580-600W
Glass: Dual glass
Certification: ISO, IEC, TUV, CE
Warranty: 30 Years
MOQ: One container 720 pcs

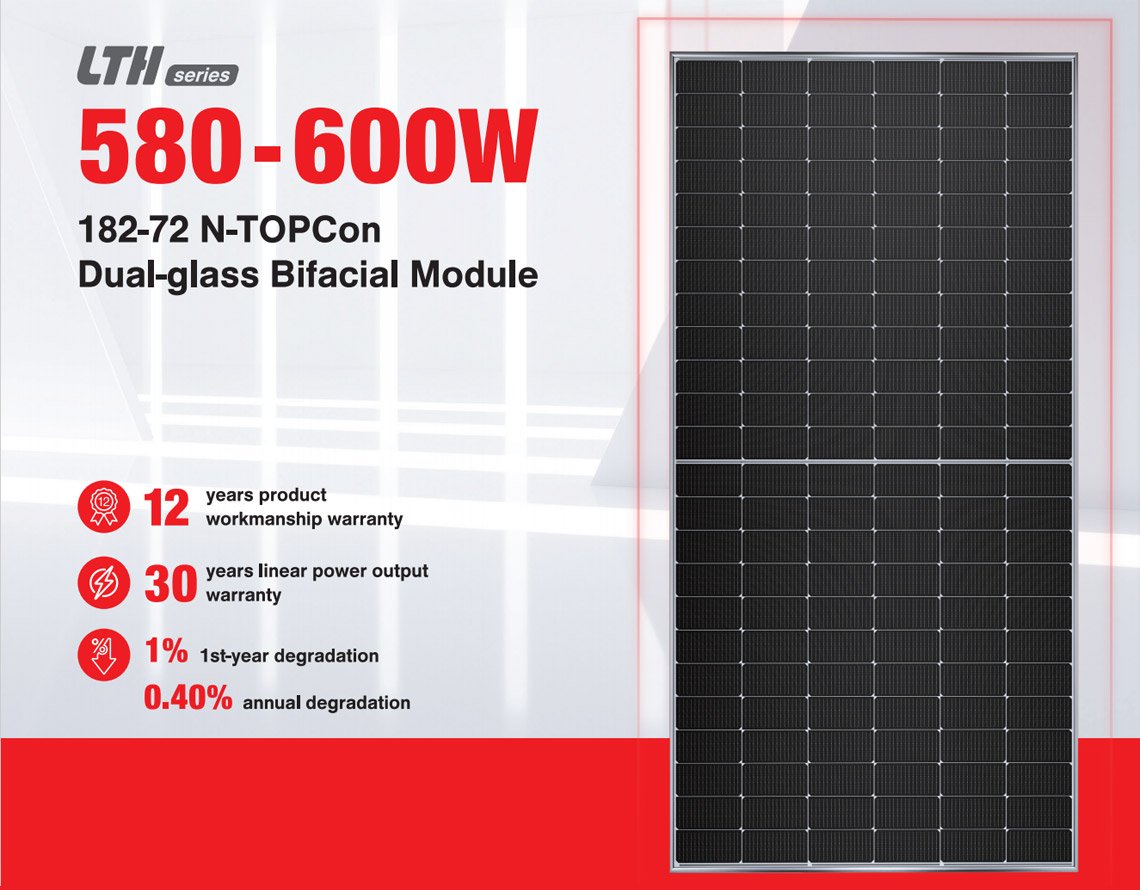

LESSO Solar Panel 580-600W Bifacial SeriesDescription
LESSO solar panels 580–600W (LTH series) are 182mm N-TOPCon dual-glass bifacial modules for utility and C&I projects worldwide. Rated 580–600W with 0~+5W tolerance and efficiency can be up to 23.23%. Built for bankability: 1500V DC, -40 to +85°C operation, IP68 junction box. LESSO 580-600W solar panels have a 12-year workmanship and 30-year linear output warranty.

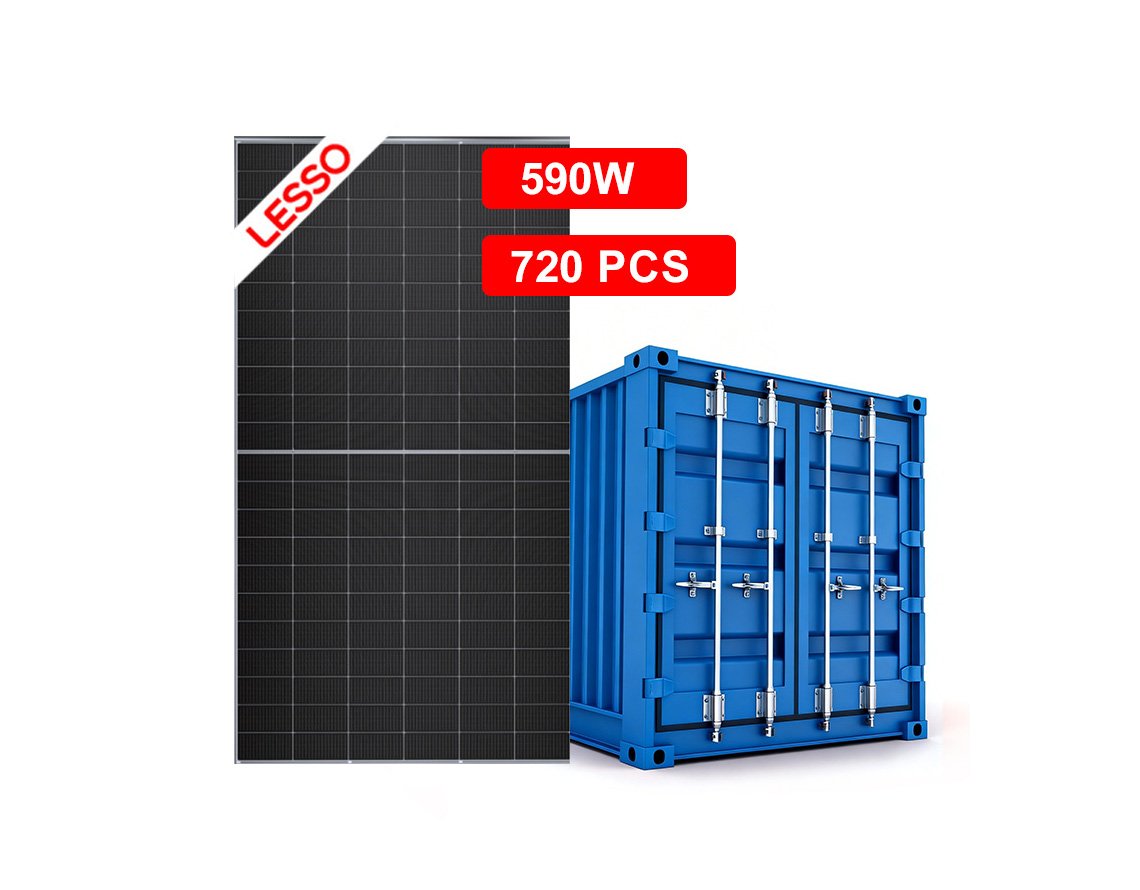

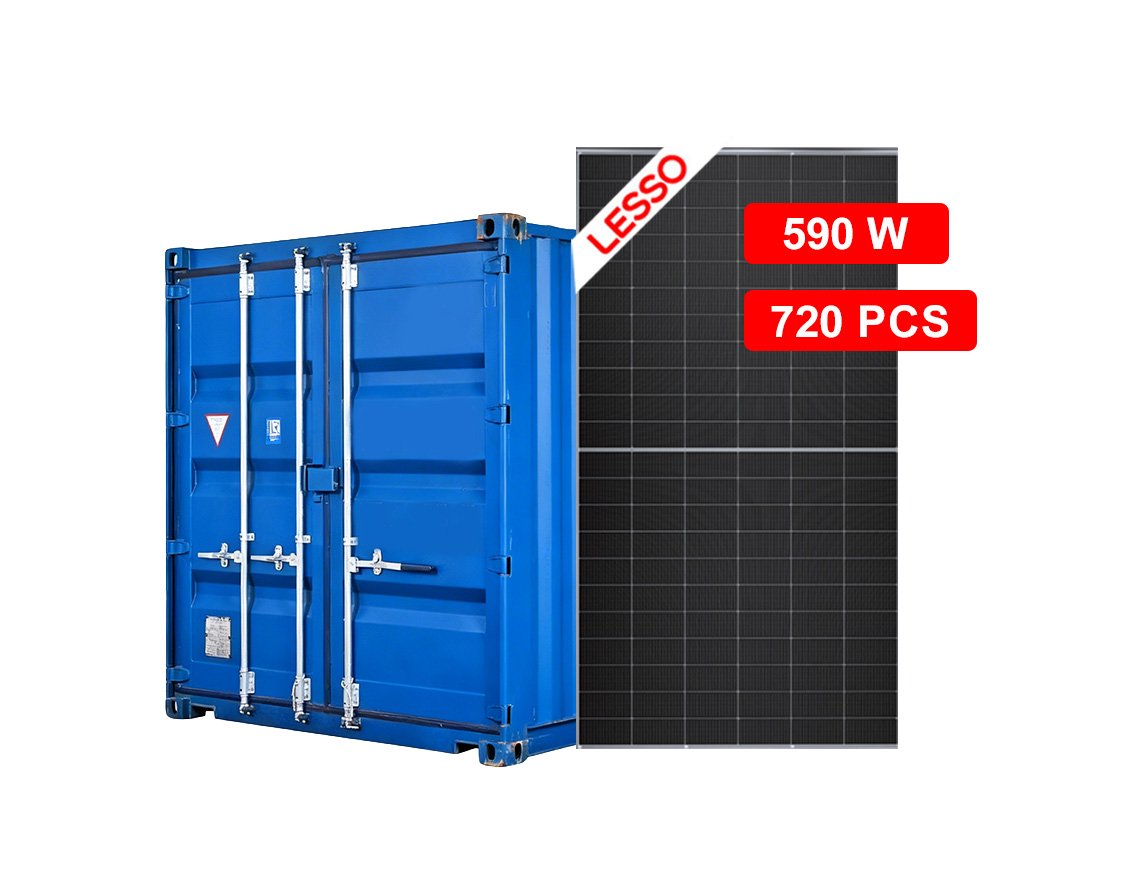

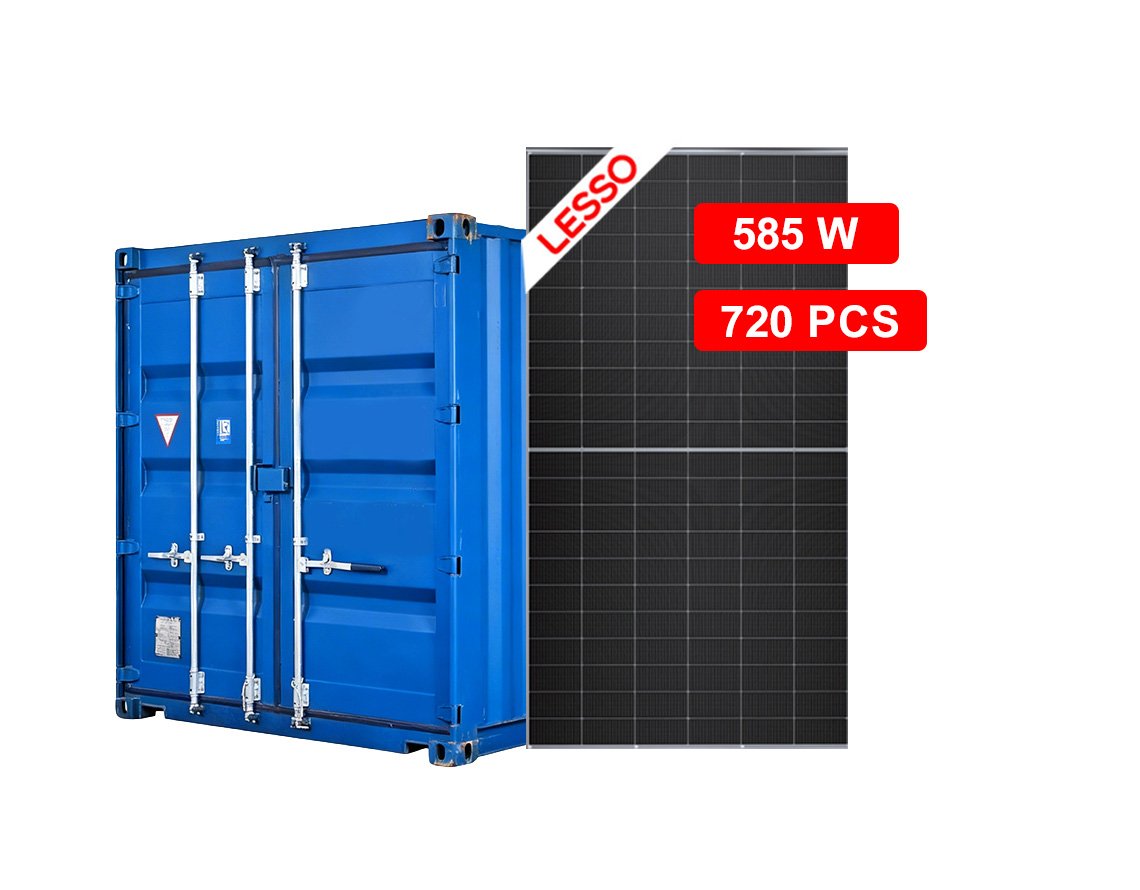

580W-600W LESSO solar panels in a 40’HQ container are 720 pcs.
- Electrical Performance Parameters
- Structure Performance
| Model Type | 580C(HBD)72(182) | 585C(HBD)72(182) | 590C(HBD)72(182) | 595C(HBD)72(182) | 600C(HBD)72(182) | |
| Nominal Max. Power | PMAX (W) | 580 | 585 | 590 | 595 | 600 |
| Max. Power Voltage | VMP (V) | 42.75 | 42.89 | 43.04 | 43.18 | 43.33 |
| Max. Power Current | IMP (A) | 13.57 | 13.64 | 13.71 | 13.78 | 13.85 |
| Open Circuit Voltage | VOC (V) | 51.43 | 51.63 | 51.83 | 52.03 | 52.23 |
| Short Circuit Current | ISC (A) | 14.33 | 14.39 | 14.45 | 14.51 | 14.57 |
| Module Efficiency | (%) | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 |
| Solar Cell Type | 182mm N-TOPCon Mono Cell (Half Cell) |
| Solar Cell Arrangement | 144pcs(6×24) |
| Module Dimension | 2278×1134×30mm |
| Weight | 31.2kg |
| Front Glass | 2.0mm, highly transparent tempered glass with anti-reflective coating |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 rated |
| Cable | 4mm2, portrait 400mm (+) 200mm (−) , landscape 1400mm (+) 1400mm (−) Length can be customized |
| Diode Quantity | 3 pcs |
| Front side / Rear side | 5400pa / 2400pa |
| Connector | MC4 Compatible |
| Per Pallet | 36pcs |
| Per Container(40’HQ) | 720pcs |
