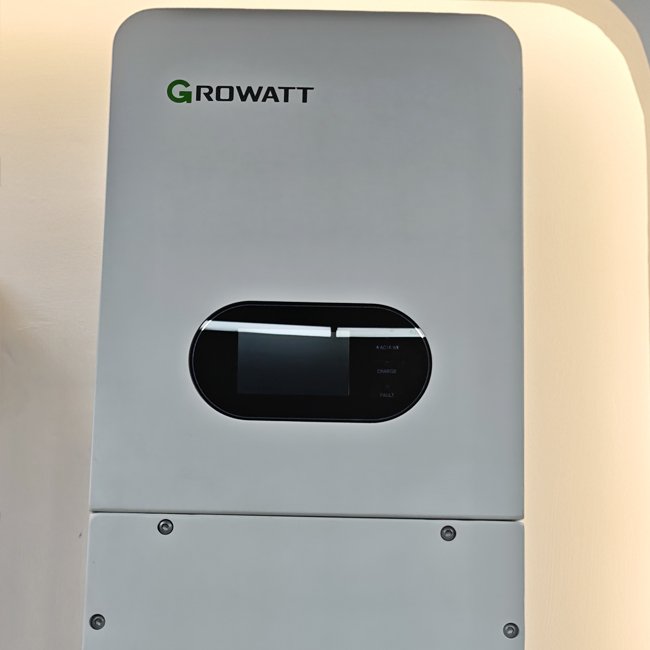

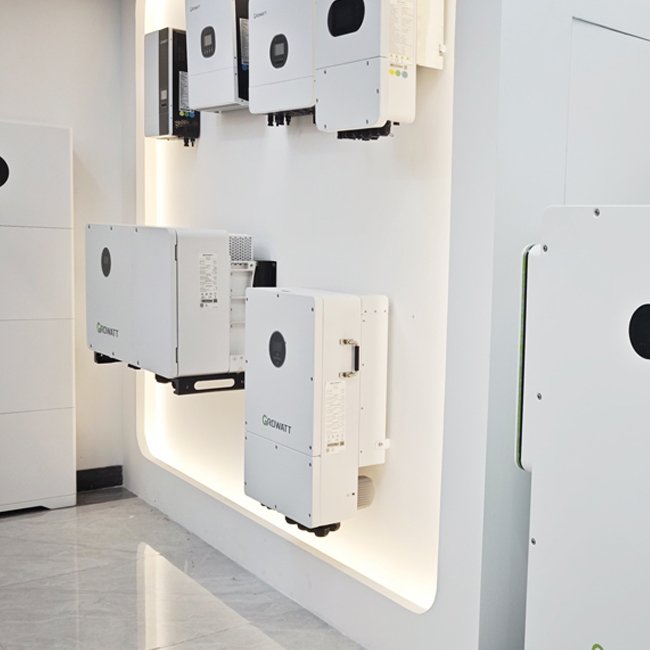

Growatt Hybrid Solar Inverter Single Phase Low Voltage 3KW-6KW
Model Number: Growatt SPM 3000TL-HU – SPM 6000TL-HU
Inverter Type: hybrid
Output Voltage: 220V/230V/240V
Output power: 3 – 6KW
Warranty: 5 years
Protection Degree: IP 65
Datasheet of SPM 3000-6000TL-HU Growatt Solar InverterDescription
The Growatt SPM 6000TL-HU is a 3kw to 6 kW, single-phase hybrid inverter that connects your solar panels, home battery, and the grid so your home uses solar first, saves extra power for later, and only pulls from the grid when needed. In a power outage, it can keep key circuits running from the battery and solar. A smart MPPT keeps your panels working efficiently, and the inverter automatically switches between charging the battery and powering the house based on your settings. It’s wall-mounted and compact, with strong built-in safety protections and optional monitoring so you can see what your system is doing in real time.
HBOWA is an official Growatt agent serving customers worldwide. We welcome both small and bulk orders, and you’ll enjoy full product service and after-sales support with every purchase. If you need anything, feel free to reach out anytime—we’re here to help.
Technical Data
- Input Data
- AC Input Data
- Output Data
- General Data
| Input Data | SPM 3000-6000TL-HU |
|---|---|
| Max. recommended PV power (for module STC) | 9000W |
| Max. input power for single MPPT | 4500W |
| Max. DC voltage | 600V |
| Start voltage | 130V |
| MPPT voltage range | 150V–550V |
| No. of MPP trackers | 2 |
| No. of PV strings per MPP tracker | 1 |
| Max. input current per MPP tracker | 22A |
| Max. short-circuit current per MPP tracker | 27.5A |
| AC Input Data | SPM 3000-6000TL-HU |
|---|---|
| Nominal AC input power | 6000W |
| Nominal input voltage | 220V / 230V / 240V |
| Nominal input current | 26.1A |
| Max. grid passthrough current | 33.3A |
| Max. generator input power | 9200W |
| Output Data | 6kW |
|---|---|
| AC nominal power | 6000W |
| Max. AC apparent power | 6000VA |
| Nominal AC voltage (range*) | 220V/230V/240V |
| AC grid frequency (range*) | 50Hz/60Hz |
| Max. output current | 26.1A |
| Adjustable power factor | 0.8 leading…0.8 lagging |
| THDi | <3% |
| Parameter | Value |
|---|---|
| Max stackable number | 6 |
| Dimensions (W/H/D) | 330/580/232 mm |
| Weight | 26 kg |
| Operating temperature range | −25~60 °C, >45 °C derating |
| Noise emission (typical) | ≤ 30 dB(A) |
| Self-consumption | < 60 W |
| Topology | Transformerless |
| Cooling | Natural |
| Protection degree | IP65 |
| Relative humidity | 0~100% |
| Altitude | < 2000 m |
| Display | LCD touch screen |

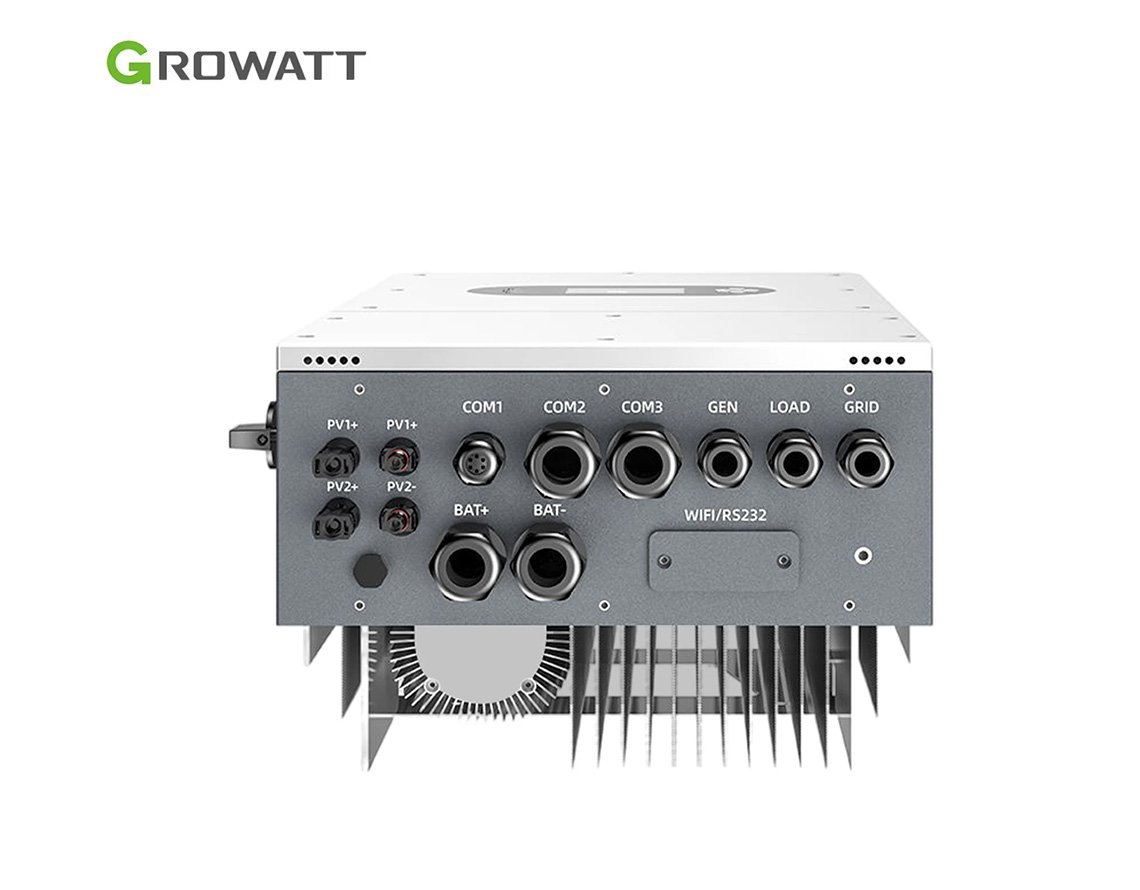

| Interfaces (RS485/CAN/USB) | Yes |
| Communication | WIFI/LAN |
| Warranty | 5 years |

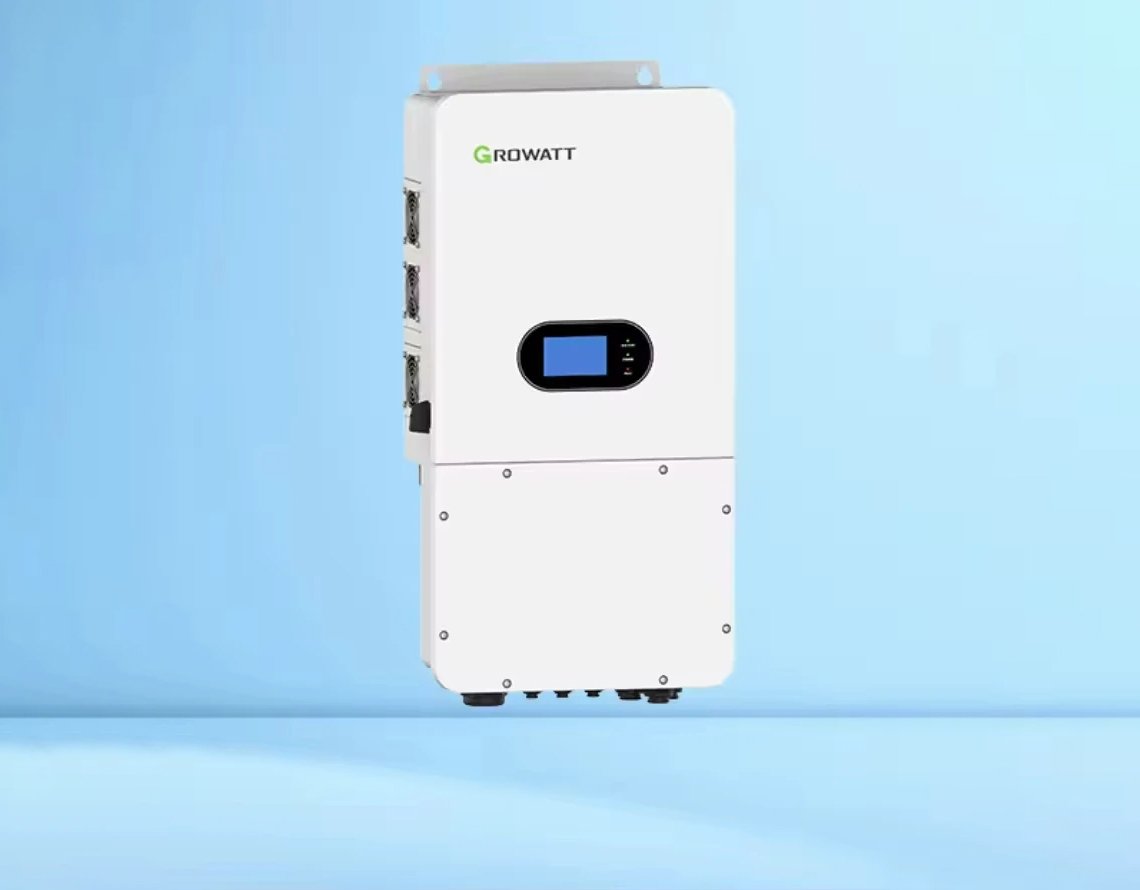

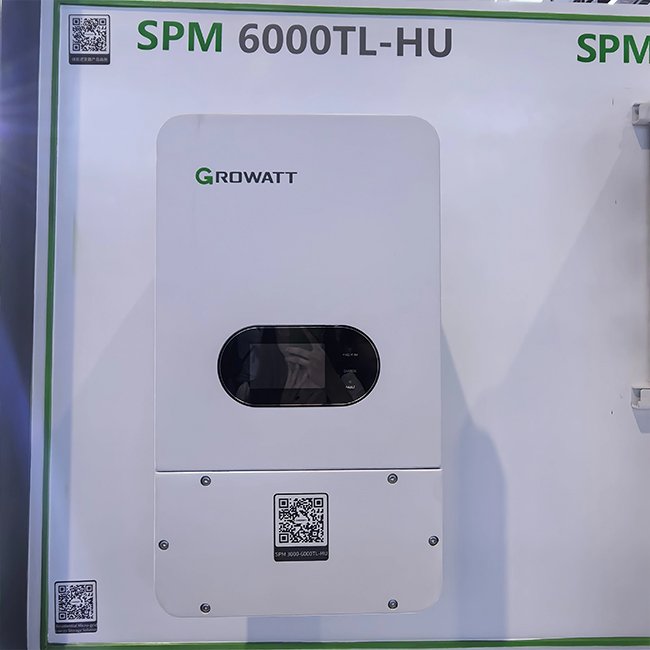

SPM 6000TL-HU Series Details
Hybrid Solar Inverter
UPS function, 10 ms transition
1.5 DC/AC ratio with 2 MPPTs
Up to 140 A charging/discharging current
Supports DC-coupled, AC-coupled, and AC-retrofit applications
Type II surge protection for DC and AC sides
Supports charging from a diesel generator
Supports up to 6 units in parallel
Supports form 400V three-phase system
Monitoring Platform
Growatt hybrid solar inverters have monitoring platforms. You can view the system’s working status and data by phone app or web monitoring platform. This is a free service for global customers, and it has a built-in Wi-Fi/4G/AN datalogger, ensuring you can access the data at any time and anywhere.
