Introduction
In the latest development of solar power, hybrid inverters for solar have become the center point of the latest systems that connect solar panels, a battery pack(s), and the utility grid. Unlike conventional inverters that pursue a single purpose, a PV inverter hybrid can store extra solar power to be consumed during non-sunny days, thus making power usage more effective and efficient and independent of the time as well. As people are continuously moving towards green energy, it is very crucial to have knowledge of how a hybrid inverter works, its kinds, and its benefits in the long term.
Market & Industry Overview

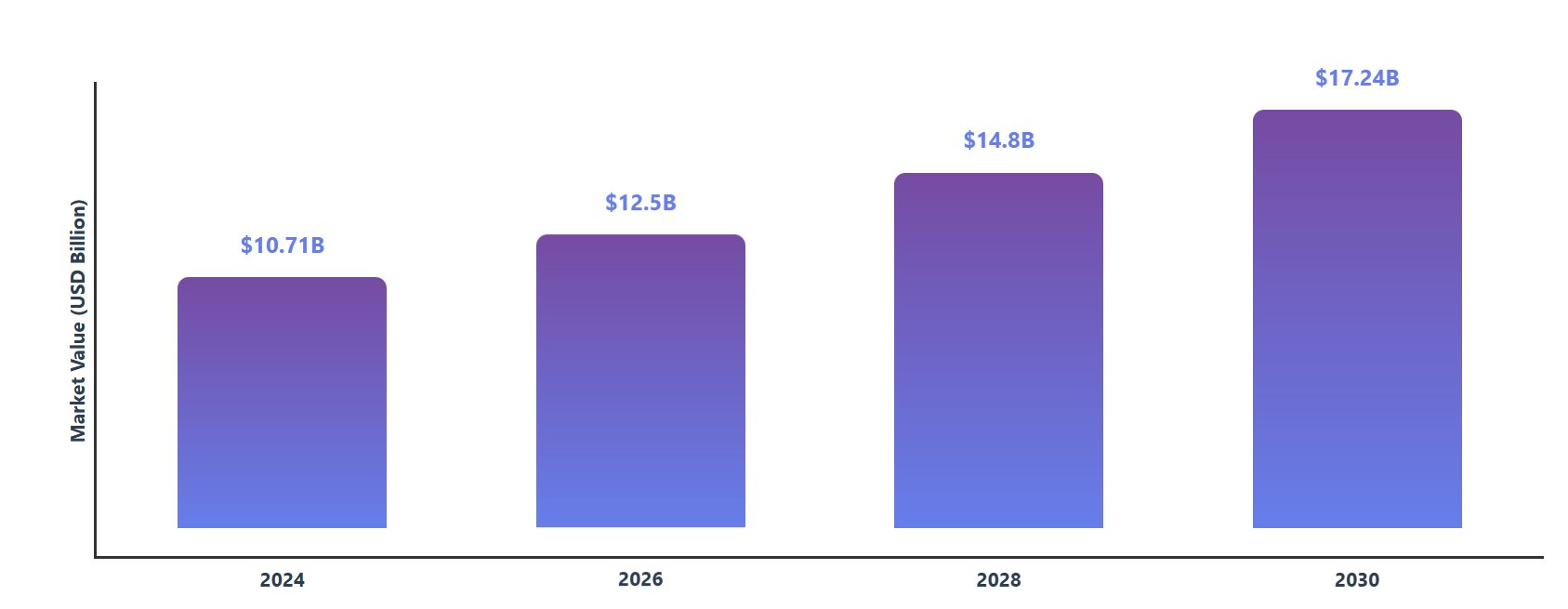

There is a high demand for hybrid inverters in solar, and the market has seen a recent surge. The global market for solar-hybrid inverters was valued at 10.71 billion dollars (2024 fiscal year) and is expected to rise to 17.24 billion dollars by 2030. Compared to conventional grid-tied systems, solar-plus-storage projects have higher reliability, which explains the significant increase in the market for this product.
This increasing research and development of solar-plus-storage solutions can be attributed to the decreasing price of batteries, stronger net-metering arrangements, and the global requirement for backup power. In 2024, the three-phase segment had the most significant revenue share of 61.3 percent. This kind of hybrid inverter is suitable for industrial and commercial applications. North America had a revenue share of about 43 percent in 2024.
PV inverter shipments across the globe hit 589 GWac, up ten percent from the previous year. The Asia-Pacific region saw most of the 2024 increase in worldwide shipments, while the US and Europe each saw declines. Thus, it can be concluded that the hybrid solar inverter for solar has a big market potential in the years to come.
What is a Hybrid Inverter?
The hybrid inverter for solar panels is a more technological, latest power management hardware that provides the best of both worlds of a conventional inverter and battery charger into one single device. It is a single-unit performing the dual function of converting the raw current (DC) derived from solar panels to usable current (AC) power for household or commercial usage while keeping a check on how the battery is charged and maintaining interaction with the power grid.
It can both feed directly into the grid and also reserve extra solar energy for further use, guaranteeing power units even when there is no grid power supply. Unlike a standard grid-tie installation, a hybrid solar inverter, also known as a hybrid solar power inverter, provides us with both grid-connected and stand-alone (off-grid) benefits. It combines the best of both worlds, and as such, it is also considered an inverter for grid solar applications.

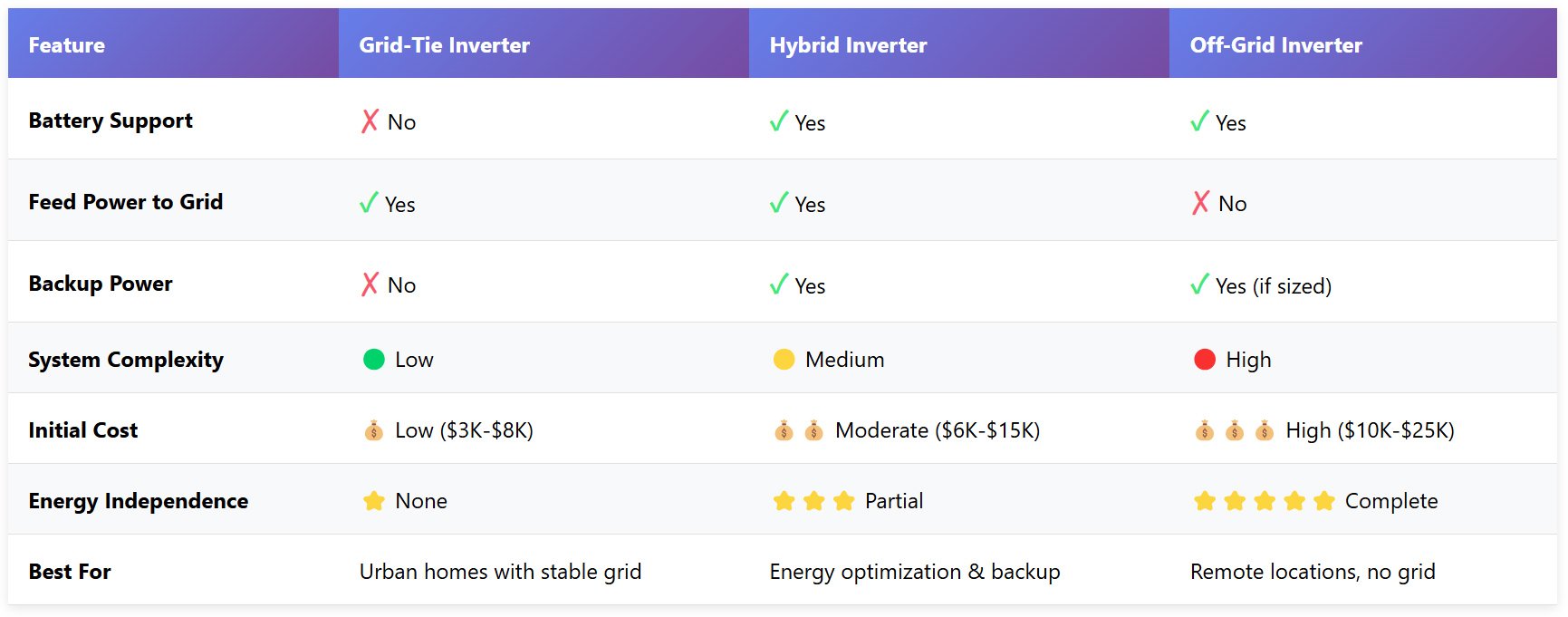

| Feature | Grid-tie inverter | Hybrid inverter | Off-grid inverter |
| Battery integration | No | Yes | Yes |
| Feed to grid | Yes | Yes | Typically no |
| Backup in outage | No | Yes | Yes (if sized properly) |
A hybrid grid inverter or grid-tie inverter hybrid is a compact, intelligent device in a solar system that helps decrease energy consumption from the grid.
How Hybrid Inverters Work: Energy Flow & Modes
The operation of solar inverters of a hybrid system comprises the dynamic management of energy between the PV modules, batteries, and the grid. During the day, the photovoltaic panels generate raw electricity. The hybrid convertor transforms the power into AC for immediate consumption. Any surplus of DC power is stored in batteries or exported to the grid if the local polices allow.
When the solar production drops, firstly, the hybrid inverter grid tie draws from the battery and then from the grid for a hassle-free supply of power without any interruption. This process is automatic, which is regulated by the embedded software, monitoring and managing the demand, solar production, and the level of battery every second.

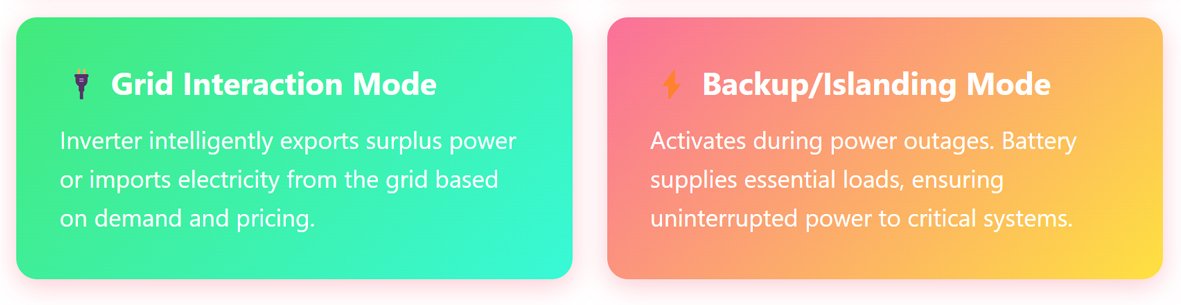

The hybrid inverters mainly operate in four different intelligent modes. In the self-consumption mode, solar power feeds the household loads at first. Any surplus then backfeeds to the grid. Any leftover power is exported to the grid if the grid-tie is a capacitive type. Loads are powered from the grid if the grid is of inductive types. During the battery mode, the surplus of power generation charges the storage system for a later purpose. During the grid interaction mode, the inverter either exports the leftover power or imports the power as per the necessity, or some other mode based on the requirement. At last, the backup or islanding mode gets activated during the power cut or shutdown mode, and the energy from the battery supplies the necessities.
For example, in a 5 kW PV + 10 kWh LiFePO₄ battery setup in Lisbon, the solar power traps with the most daily angles and covers most of the daytime loads. Solar power later charges the battery to the full extent by considering to be the early afternoon. During the later afternoon, the surplus power generated by the home, and during the nighttime, the spare power stored in the battery takes over the requirements of the house. The grid is only drawn if and only if the battery level drops to a particular set of levels.
Types & Topologies of Hybrid Inverters
There are different types of solar inverters, and various topologies of the hybrid inverter have been used in residential, commercial, and industrial applications. Nowadays, modern hybrid inverters for solar are available in different models to meet the needs of every client. The most common type is the single-type or single-phase hybrid inverter. This modern hybrid inverter can support power requirements in residential use and commercial buildings and comes with easy installation. The 3-phase hybrid inverter is another type that is widely used in factories to distribute the load efficiently.
Some of the hybrid inverters even come with an integrated solar charge controller to make the panel installation fast and easy for people. Some of the modern hybrid systems include an all-in-one energy storage system that integrates a battery and an inverter and requires limited space for installation. On the other hand, some of the modern hybrid systems are modular hybrid systems that allow future expansion. Thus, a user can start with a small amount of initial investment and can add panels or batteries in the future as the demand for energy increases.
| Type | Use Case | Pros | Cons |
| Single-phase hybrid | Residential homes | Simpler wiring, cost-efficient | Lower capacity |
| Three-phase hybrid | Commercial / industrial | Handles higher loads, balanced phases | Higher cost, complexity |
| All-in-one ESS | Space-constrained installs | Compact, simplified install | Limited upgradeability |
| Modular hybrid | Phased expansion | Scalable, future-proof | More interconnections, cost |
Manufacturers like Growatt and Deye offer robust models such as the Growatt 10 kW hybrid inverter series. At HBOWA, we supply and integrate these top-tier products to match system scale and user requirements.
Key Features & Technologies That Matter
The solar panel hybrid inverter’s performance depends on many factors that boost the efficacy, safety, and reliability of the inverter.
One of the most crucial technologies is the MPPT, but now the question arises: what is this technology? The feature alters the inverter’s operating point so that it would draw maximum energy from the solar panels, even if the environment’s sunlight fluctuates on and off periodically. It is highly essential to determine the battery’s capability to know its compatibility.

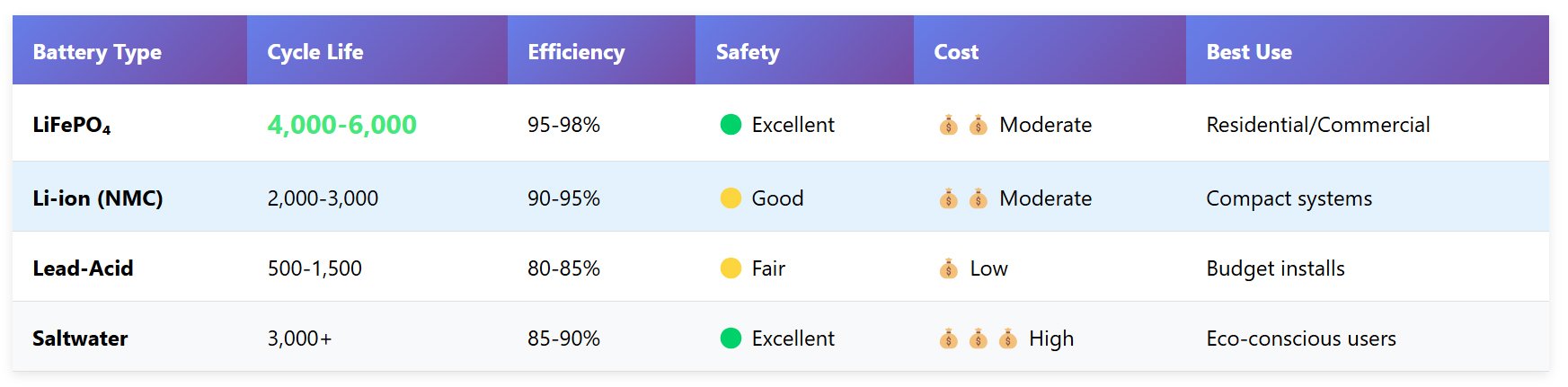

New age and best models of hybrid inverters can primarily support LiFePO₄ batteries. This battery has an extended lifespan, better thermal resistance, and higher round-trip efficiency than traditional lithium-ion chemistries. These kinds of smart Energy Management Systems (EMS) can automatically control:
- Solar energy usage prioritization
- Shift loads according to the tariff periods
- Battery charging schedules.
The new models of solar panel inverters’ hybrid converter technology also have the best Wi-Fi, RS485, or cloud monitoring systems. Many high-end inverters like the Victron hybrid inverter, Growatt hybrid inverter, etc. These inverters provide a smooth switch over to the hybrid model during power cuts. Most of these models convert to the battery mode in less than 10 milliseconds. This helps the essential loads to stay running when required.
Advantages, Disadvantages & Trade-offs
A hybrid power inverter offers the function of both a grid-tie and an off-grid system, which allows users to arrange solar energy and stored power intelligently. A hybrid inverter has several benefits and a few limitations that need to be considered properly.
Advantages:
-Higher self-consumption and lower reliance on the grid. This is because of stored solar for use at night.
-Constant and reliable back up power during grid failures.
-It’s very flexible when it comes to expansion, and a person can start off with solar, just in case they are not ready to invest in a battery, and can add batteries in the later course of time.
-One can get to sell more power back to the grid.
-Smart nature: The systems have built-in control systems and monitoring systems to use.
Disadvantages/ trade-offs:
-upfront cost
-A slightly more complex design compared to a grid-tie design.
-Slight loss of efficiency because of the battery charge or discharge cycles.
-Many models are only compatible with limited batteries.
-Different models have different maintenance schedules and warranty clauses.
In places where feed-in tariffs are low, like Southern Europe, the return on investment for hybrid inverters for solar is seven to ten years, compared to four to six years on simple grid-tie systems. Hence, one must make a choice depending on the policy of the market and how the energy is priced in that area.
Hybrid vs Traditional (Grid-Tie / Off-Grid) — Comparison
The difference between a hybrid inverter and off off-grid inverter depends mainly on how flexible it is and how it interacts with the grid.
Cost, ROI & Real-World Case Studies
The cost of hybrid inverters for solar varies greatly based on the system size, the capacity of the battery, and the quality of the brand. The cost of residential systems 5-15 KW, along with the storage of the LiFePO₄ battery, is in the range of USD/EUR 6,000–15,000, and for commercial installations between 50 and 200 KW can bring a cost of USD/EUR 35000-120,000 based on the configuration and the size of the battery. The total system cost has been reduced over the years because of improved inverter efficiency and the declining price of batteries.
A 10 KW solar power paired with a 20 kWh LiFePO₄ battery is guaranteed by a hybrid system to save around 70% of the energy cost. If the cost of grid electricity is USD 0.20 per kWh and 5,000 kWh is generated yearly, then the savings would be USD 1,000 per year if we consume it only. With the help of the PV hybrid inverter, the total saving can be increased by 20–30% as the battery storage helps in shifting load to price tariffs (such as USD 0.30/kWh).
Hybrid inverters give a greater rate of return and work better in comparison with the grid-tie-only system of the same size, and save the building from lightning strikes. It is a smarter alternative for energy consumption. It works better than the centralized system for solar energy and has become common in buildings. It also saves battery life by not overcharging it. A popular model like the Growatt 10KW hybrid inverters (Growatt SPM 8000-10000TL-HU) helps in optimizing energy management, enables improving efficiency, and achieves a higher rate of return if combined with smart scheduling, time-of-use tariffs, and phased battery expansion.
This shows that the amount of the cost on hand may be higher than the grid-tie only system, but it offers a certain level of energy independence, savings, and the additional benefits of backup power in different areas.
Off-Grid Possibility & Hybrid as a Bridge
A hybrid grid inverter can function in both on-grid and off-grid modes, and it can also work as a bridge to independence from energy requirements from the grid. Hybrid on-grid inverters can work without a grid during outages through islanding. Off-grid mode needs more significant batteries and system sizing.
Autonomy depends on battery capacity, load profile, and seasonal variation. For example, a remote cabin using a hybrid inverter on a grid setup with a 30 kWh battery can sustain 2-3 days of power without sun. After that, a backup generator or more PV capacity is needed. Hybrid systems also provide the necessary flexibility, maintaining reliability by using the grid, but having the functionality of off-grid.
Conclusion
To sum up, it can be said that Hybrid inverters for solar provide a perfect solution between tied and off-grid systems. It is also called a Bi-directional inverter. Hybrid inverters are a single smart device that can convert the energy, store and interact with the grid. HBOWA believes that hybrid inverters are quite beneficial in areas with national grid outages, in time-based tariffs, to achieve partial energy independence, and several other reasons. If the solar power system is designed accurately, then it can enhance self-consumption.
At HBOWA, we tailor hybrid inverter + LiFePO₄ systems for diverse applications, from residential rooftops to large-scale utility projects. If you have requirements, feel free to contact us at any time.
Frequently Asked Questions
Yes, many pv inverter hybrid systems operate without a battery, but this limits storage and backup functionality, effectively reducing the system to a standard grid-tie inverter.
High-quality branded hybrid inverters for solar have a life of 10–15 years, with some new technology top-tier models reaching 20 years if maintained properly.
LiFePO₄ batteries are preferred due to safety, long cycle life, and they pair effectively with hybrid solar power inverters for both residential and commercial setups.
Yes, Growatt hybrid inverters are reliable, widely used, and known for smart energy management, efficient MPPT tracking, and smooth backup switching.
Sizing depends on load and PV array. Typically, 5–15 kW systems suit single-family homes, while larger multi-family or small commercial setups may require 10–20 kW. Correct sizing ensures optimal efficiency and battery utilization.
