Introduction
Before helping you decide whether or not to invest in solar power, it’s important to first understand how many watts does a solar panel produces and how much energy does a solar panel produces in different conditions. Wattage represents a panel’s instantaneous power, and kilowatt-hours (kWh) signify the total energy it produces over time. This distinction helps to determine how many solar panels are needed to produce the desired energy and how much money can be saved. HBOWA is a global wholesaler offering a wide range of N-type TOPCon, PERC, and Tier-1 solar panels along with inverters and LiFePO4 batteries for residential, commercial, and industrial uses. This article discusses the different watt ranges, factors affecting them, and real-world examples of how much energy a solar panel produces.
Understanding Solar Panel Wattage and Energy Output
Watts measure instantaneous power output, whereas kilowatts and kilowatt-hours, commonly abbreviated as kW and kWh, respectively, indicate the capacity to generate or consume electricity over time. A kilowatt-hour is the amount of momentary output produced or consumed when one kw operates for one hour.
Solar panels’ rated wattage mentioned on the specification label of each panel is determined under the Standard Test Conditions (STC). This is 1000 watts per square meter in solar irradiance with a cell temperature of 25°C and an air mass of 1.5. This testing is done in laboratories and, therefore, to compare panels, common benchmarks are considered.
However, actual energy produced by a panel varies widely, depending on the angle of sunlight, the availability of the sun, and the surrounding temperature. The direct answer to how many watts does a solar panel generates is based on watts or kW, and the energy produced by the panel in real life creates a difference between the two results. For example, a 400W panel will only output near 400W of power during peak sunlight rather than most hours of the day. Therefore, the daily energy yield is always measured in kilowatt-hours and is generally lower than the panel’s capacity. Understanding this difference is the key to figuring out how much electricity does a solar panel produces in any given location.
Typical Wattage Ratings of Modern Solar Panels
The rated capacity of the modern solar panels differs vastly, with the majority of the residential and commercial selections ranging between 350 to 700 watts. It is essential to know how many watts per solar panel you are purchasing, for designing the system accurately. With the addition of N-type TOPCon and bifacial technology, the yield of the panel with watts has increased. A 480 watt solar panel can be installed within the same footprint at times as a 350W module, and it will often provide far higher annual energy yield.
Below is an example of estimated production for different wattage panels under high-sun (6.0 psh) and moderate-sun (4.5 psh) conditions, assuming 85% system efficiency.
HBOWA provides N-type TOPCon, both PERC panels to cover this complete range, to support residential rooftops, commercial arrays and industrial-scale projects, and HBOWA delivers the highest average solar panel output per day. The rated size of a solar panel plays a direct role in the return on investment, so knowing that how much power does a solar panel produce for its sized consumption help you to identify the exact number of panels you need for optimize performance.
How to Calculate Daily Energy Production(Step-by-Step)
To find out how many solar panels do you need to be off-grid, the following formula is used.
Daily kWh = Panel Wattage x Peak Sun Hours x Efficiency Factor
The efficiency factor is for real-world losses from wiring, inverter conversion, and temperature effects. Peak Sun Hours (PSH) is how the equivalent number of hours per day. The average intensity of sunlight is 1,000 watts per square meter.
The global irradiance maps, national renewable energy databases can be used to obtain the PSH value for your location. Different countries have different PSH values. The average daily values region- wise are Germany (3.2), Australia (5.5), India (5.2), U.S. Southwest (6.0), South Africa (5.8).
| Location | Peak Sun Hours |
| Germany | 3.2 |
| Australia | 5.5 |
| India | 5.2 |
| U.S. Southwest | 6.0 |
| South Africa | 5.8 |
For example, a 400W solar panel in location with 5.5 PSH and 85% efficiency will produce;
400Wx5.5×0.85= 1870Wh or 1.87 kWh per day.
This figure helps in estimating that the solar panels will produce how many kWh monthly or annually. It can be refined using a solar panel calculator for site-specific conditions. Even the solar panel 1 square meter output per hour depend on solar panel efficiency and the intensity of sunlight your location gets.
Monthly and Yearly Energy Production (Global Examples)
By taking into account the energy values recorded on a daily basis, companies can figure out the total energy generated over the long term basis. By multiplying the daily production values by 365, we get the yearly energy production of the particular module of the panel. And by multiplying the production values with 30, the monthly values can be calculated. For example, how many kWh does a 400W solar panel produce depends on peak sun hours and system efficiency.
| Climate Type | Daily Output | Monthly Output | Yearly Output |
| Sunny (6.0 PSH) | 2.04 kWh | 61.2 kWh | 745 kWh |
| Cloudy (3.5 PSH) | 1.19 kWh | 35.7 kWh | 435 kWh |
For example, a 400W module might produce around 40% less energy in a coastal region with frequent overcast conditions than in a high-altitude desert site with constant, strong sunshine each day. But in higher elevation increases the irradiance, thereby allowing us to produce more energy over time.

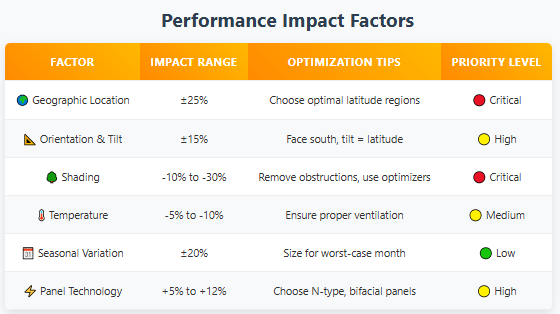

Factors Affecting How Many Watts a Solar Panel Produces
Several factors determine how much watt a solar panel produces. The amount of sunlight available to the location to the location is an important factor in it. Regions that are closer to the equator receive a more consistent amount of sunlight, so fewer watts will a solar panel generate that is also defined by its geographic location.
The tilt and orientation of the solar panel also play an important role in determining their wattage output. The panel’s tilt and orientation must be as close to the latitude of the site it is installed to get maximum sunlight throughout the year.
Shading is an important factor that will reduce how much electricity does solar panel produce. Shading over a single solar cell can reduce its production by more than 30% if no bypass diodes are put in place to offset it. Even the covering of the dust can create a significant difference in the solar panel’s output.
Temperature is another aspect of the solar panel’s production. Whenever solar panels get too hot, their electrical resistance increases, and it will also lower their energy production. Output will decrease due to high temperature by 10% to 25% in the peak of the summer.
A solar panel also produces more electricity in a daytime without that temperature. Different kinds of solar panels generate different watts of electricity. Even a single solar panel’s production in terms of watt can differ between summer and winter. The solar panel produces low watts of electricity in the winter season as the day is shorter. Monocrystalline solar panels usually produce more watts of electricity than polycrystalline and amorphous silicon cells. Monocrystalline cells also need less space to be installed into.
A bifacial solar panel is another generation of solar panels that are efficient in almost every way. This type of solar panel collects the sunlight that falls at the back of the panel. It uses a solar cell that can use the sunlight falling on the panel from its two sides. The new n-type top-con solar panels are also much better than the bifacial cells. N-type top-con solar panel cells use copper electroplating on both of their sides to improve the cell efficiency.
How Many Panels Do You Need to Power a Home?
In sunnier climates, you require fewer panels to get to the same target, while cloudy or northern climes require more. High-efficiency HBOWA modules are often chosen for residential and commercial bulk projects because they lessen the total panel count while maintaining energy output. Size the system accurately, and it’ll reliably meet how many kWh should solar panels produce for the home’s needs.
| Home Size | Climate (PSH) | Daily Need | Panel Output (kWh/day) | Panels Needed |
| Small | 5.0 | 9 | 2.0 | 5 |
| Medium | 5.0 | 18 | 2.0 | 9 |
| Large | 5.0 | 32 | 2.0 | 16 |
In sunnier climates, you require fewer panels to get to the same target, while cloudy or northern climes require more. High-efficiency HBOWA modules are often chosen for residential and commercial bulk projects because they lessen the total panel count while maintaining energy output. Size the system accurately, and it’ll reliably meet how many kWh should solar panels produce for the home’s needs.

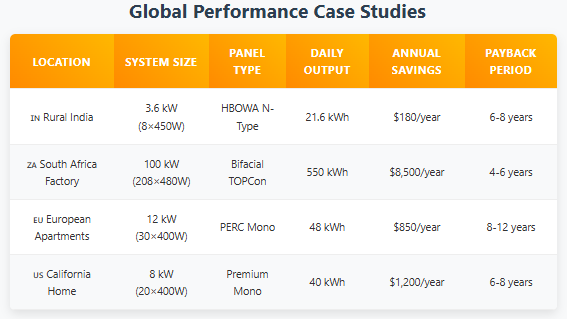

Real-Life Case Studies
Case studies demonstrates how much energy can solar panels produce under real conditions.
Rural India (450W solar panels, 6 PSH) has a place where solar panels produce 2.7kWh everyday or 81kWh in a month or 985kWh each year. The combo charges batteries and power lighting, fans, and appliances. Plus the Solar Panels also saves around $180 in electricity bills annually.
In other case, Solar Panels also produce 2.64kWh on a daily basis in South Africa Factory (480W panels, 5.5 PSH) or 79.2kWh in a month or 964kWh per panel each year. The array yields 65% of the factory’s daytime electricity use and decreases grid dependence during the peak tariff hours.
Similarly in other real lifer example, the urban apartments of Europe (400W panels, 4 PSH) produce 1.6kWh/day per panel, 48kWh/month, 584kWh per panel each year. Because of the limited roof space available, we can use at most four panels, generating only 20-25% of what we need. It sells the rest of the energy, thereby cutting the yearly bill by many dollars.
Tools and Methods to Accurately Predict Output
A solar panel calculator is one of the most dependable ways to predict a system’s performance before installation. These tools take into account location, panel wattage, tilt angle, and average hours of sunlight to representative a condition-specific how many watts does a solar panel produce. Many of the HBOWA popular calculators plus satellite data can be use for more accuracy. Datasheet values alone are not indicative of real-world performance. Site-specific analysis needs to consider shading, seasonal variation, local climatic distributions to assess ‘How much energy can a solar panel produce over time?’
HBOWA aids businesses and large scale users with professional system sizing services. This involves the advanced software simulations and our experts guidance before and after sales. The site analysis calculates how much wattage does the solar panel produce more accurately. This ensures, the predicted output closely matches the results, preventing unde-powered or overpowered installations.
Conclusion
As for the final thought, now you know how many kWh will a solar panel produce. Therefore, to answer the question of ‘how much electricity will solar panels produce,’ it can be said that determining the availability of sunlight, capacity, and quality of installation, you’ll be able to generate or produce a good profit from its correct measurement. If calculated or chosen correctly, solar panels will produce electricity that will cover most of your household’s needs for electricity. HBOWA delivers high-performance solar panels, inverters and LiFePO4 batteries in bulk to generate the maximum energy in various climates across the world.
