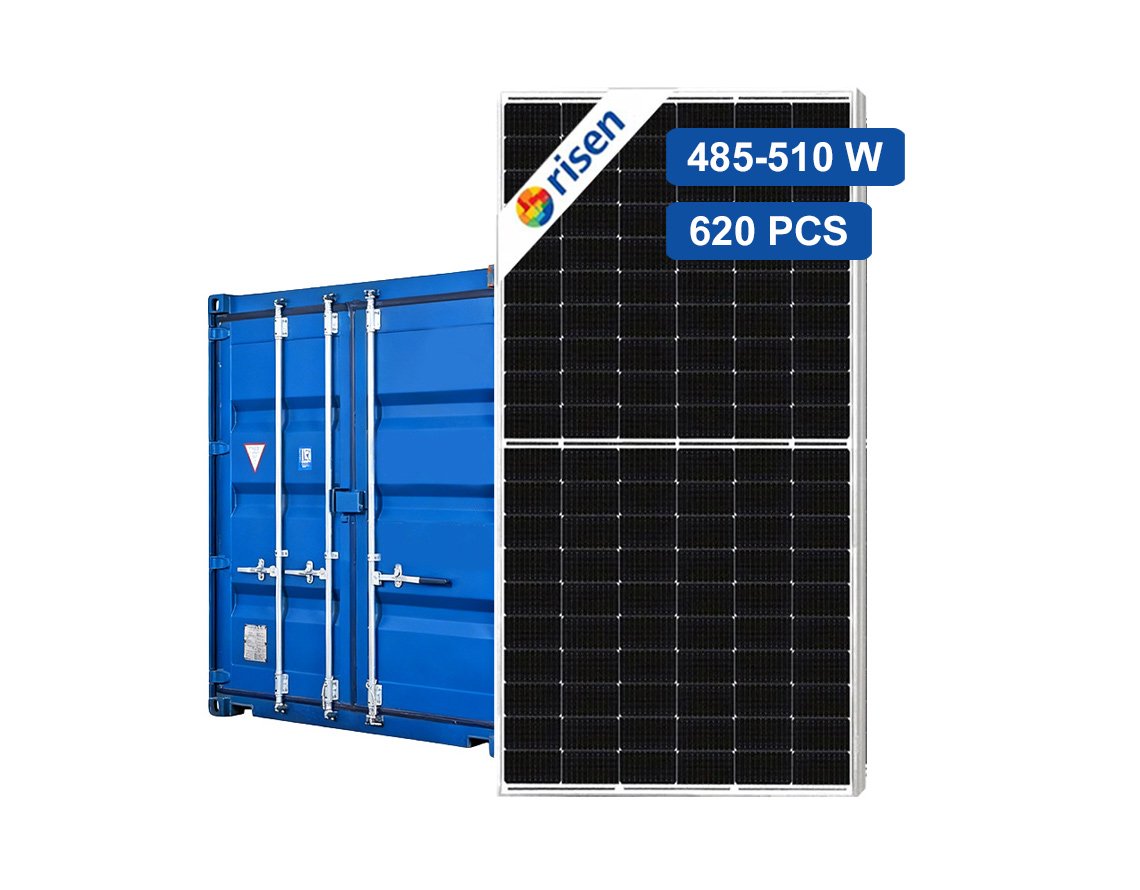

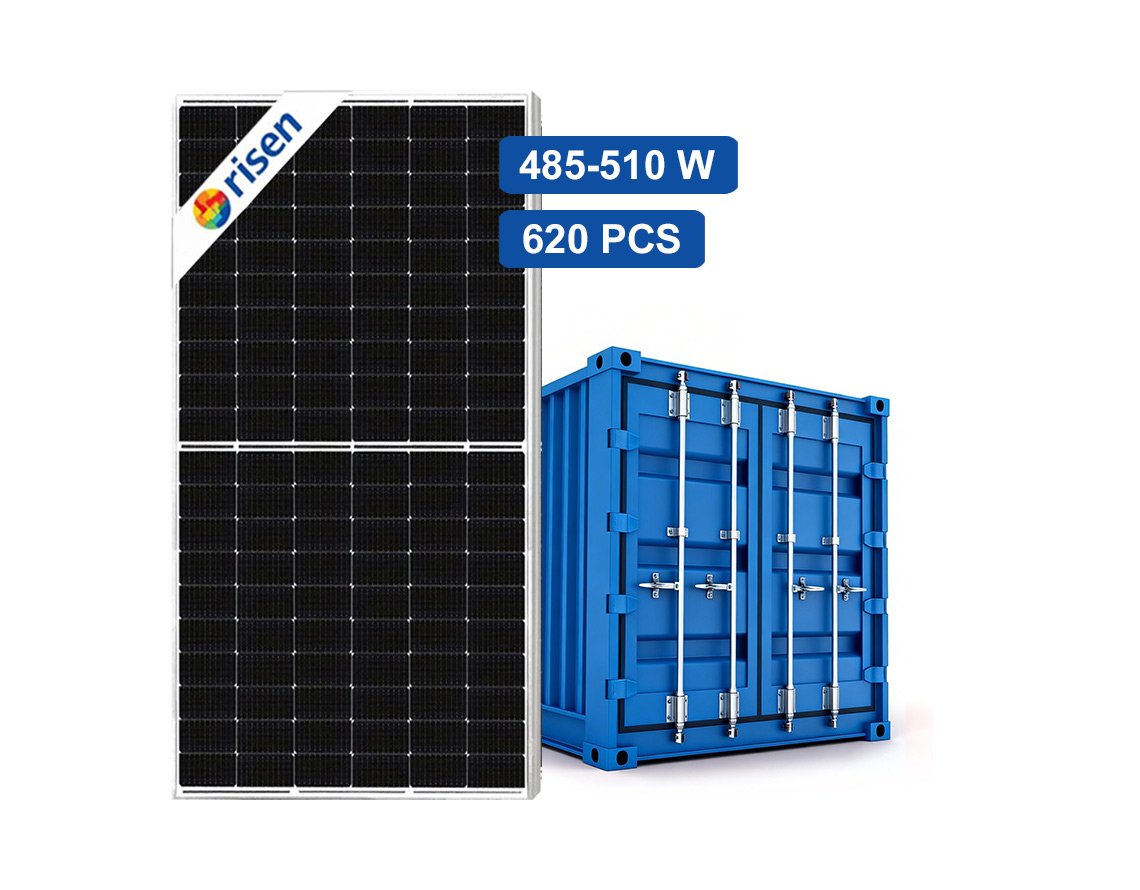

Risen Solar Panels 485W-510W Per Container 620 PCS

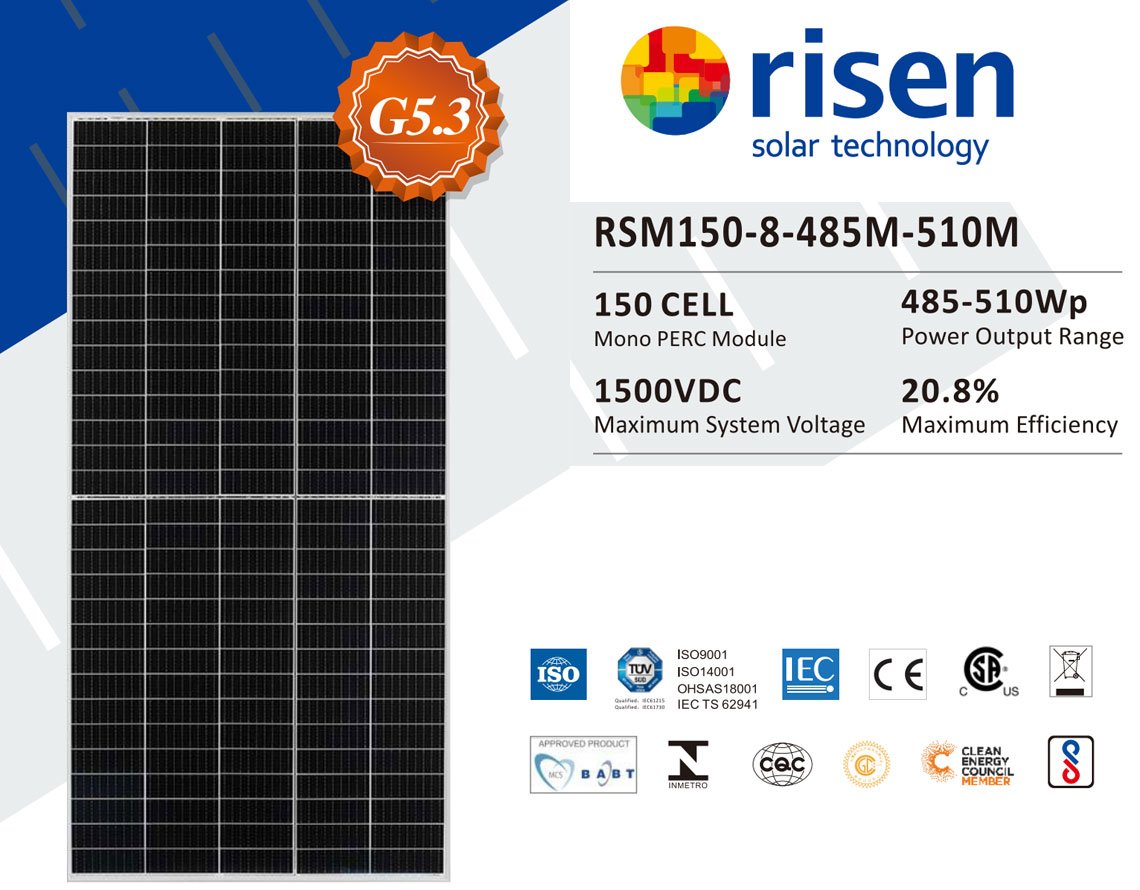

Model: RSM150-8-485M-510M
Cell: Monocrystalline
Power Range:485-510W
Glass: single glass
Certification: CE, TUV
Warranty: 25 Years
MOQ: One container of 620 pcs
Risen 485M-510M Solar Panels By ContainerDescription
Risen Solar Panels 485W-510W Per Container are 620 PCS. The mono cell design and anti-reflective glass help squeeze out extra kWh in real conditions, while a rugged aluminum frame and sealed junction box keep the module performing in coastal, dusty, or high-wind sites. Risen 485-510W solar panels connect easily with mainstream racking and inverters, arrive palletized for smooth logistics, and are backed by bankable warranties of 12 years product warranty. Large Risen solar panels 485-510W per container for sale.
- Specifications STC
- Mechanical Data
| Parameter | RSM150-8-485M | RSM150-8-490M | RSM150-8-495M | RSM150-8-500M | RSM150-8-505M | RSM150-8-510M |
|---|---|---|---|---|---|---|
| Rated Power (Pmax) [Wp] | 485 | 490 | 495 | 500 | 505 | 510 |
| Open-Circuit Voltage (Voc) [V] | 50.35 | 50.57 | 50.79 | 51.01 | 51.23 | 51.45 |
| Short-Circuit Current (Isc) [A] | 12.25 | 12.32 | 12.39 | 12.46 | 12.53 | 12.60 |
| Maximum Power Voltage (Vmpp) [V] | 42.22 | 42.44 | 42.66 | 42.88 | 43.10 | 43.32 |
| Maximum Power Current (Impp) [A] | 11.50 | 11.56 | 11.62 | 11.68 | 11.74 | 11.80 |
| Module Efficiency [%] | 19.8 | 20.0 | 20.2 | 20.4 | 20.6 | 20.8 |
| Specification | Details |
|---|---|
| Solar Cells | Monocrystalline |
| Cell Configuration | 150 cells (5×15 + 5×15) |
| Module Dimensions | 2220 × 1102 × 35 mm |
| Weight | 27 ± 1 kg |
| Superstrate | High-transmission, low-iron, tempered ARC glass |
| Substrate | White backsheet |
| Frame | Anodized aluminum alloy 6005-2T6, silver |
| J-Box | Potted, IP68, 1500 VDC, 3 Schottky bypass diodes |
| Cables | 4.0 mm² (12 AWG); Positive +350 mm, Negative −350 mm (connector included) |
| Connector | Risen Twinsel PV-SY02, IP68 |
