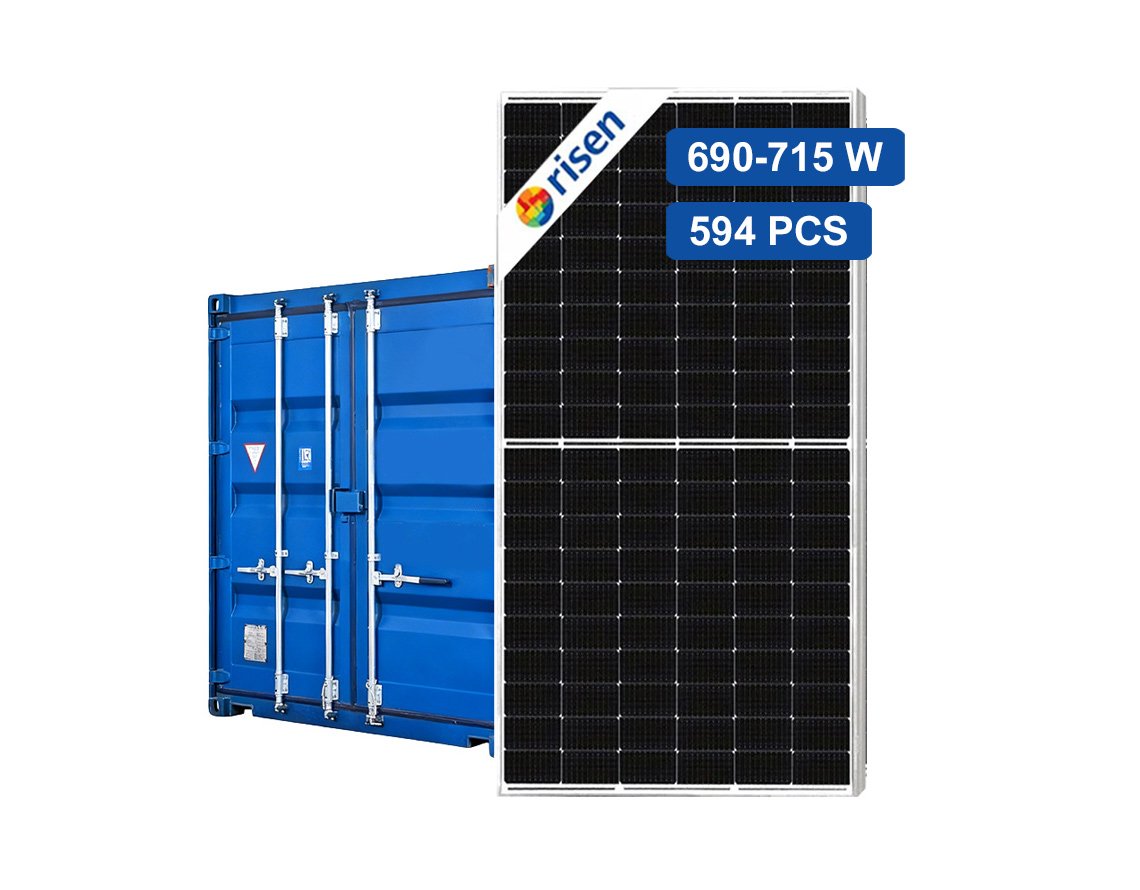

Risen Solar Panels 690W-715W Per Container 594pcs
Model: RSM132-8-690-715BHDG
Cell: N-Type HJT
Power Range:690-715W
Glass: dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of
Risen 690-715BHDG HJT Solar Panels By containerDescription
Risen solar panels 690-715W by container are designed for solar farms. The n-type HJT cell solar panels 715W are bifacial, dual-glass builds, show efficient performance in hot and real-world conditions. High-density interconnection and lead-free metallization reduce resistive loss and improve durability, 15 years product warranty and 30 years of linear power warranty are provided.
If you are sourcing solar panels in this range 690-715W for large project and solar farms, feel free to contact for bulk price.
- Specifications STC
- Mechanical Data
| Parameter | 690 | 695 | 700 | 705 | 710 | 715 |
|---|---|---|---|---|---|---|
| Rated Power (Pmax) [Wp] | 690 | 695 | 700 | 705 | 710 | 715 |
| Open-Circuit Voltage (Voc) [V] | 49.65 | 49.74 | 49.83 | 49.92 | 50.01 | 50.09 |
| Short-Circuit Current (Isc) [A] | 17.66 | 17.74 | 17.82 | 17.91 | 18.00 | 18.10 |
| Maximum Power Voltage (Vmpp) [V] | 41.63 | 41.71 | 41.78 | 41.86 | 41.93 | 42.00 |
| Maximum Power Current (Impp) [A] | 16.60 | 16.68 | 16.77 | 16.86 | 16.95 | 17.05 |
| Module Efficiency [%] | 22.2 | 22.4 | 22.5 | 22.7 | 22.9 | 23.0 |
| Specification | Details |
|---|---|
| Solar cells | n-type HJT |
| Cell configuration | 132 cells (6×11 + 6×11) |
| Module dimensions | 2384 × 1303 × 33 mm |
| Weight | 37.5 kg |
| Superstrate | High-transmission, AR-coated heat-strengthened glass |
| Substrate | Heat-strengthened glass |
| Frame | Anodized aluminum alloy, silver |
| J-Box | Potted, IP68, 1500 VDC, 3 Schottky bypass diodes |
| Cables | 4.0 mm²; Positive +350 mm, Negative −230 mm (connector included), or customized length |
| Connector | Risen Twinsel PV-SY02, IP68 |
