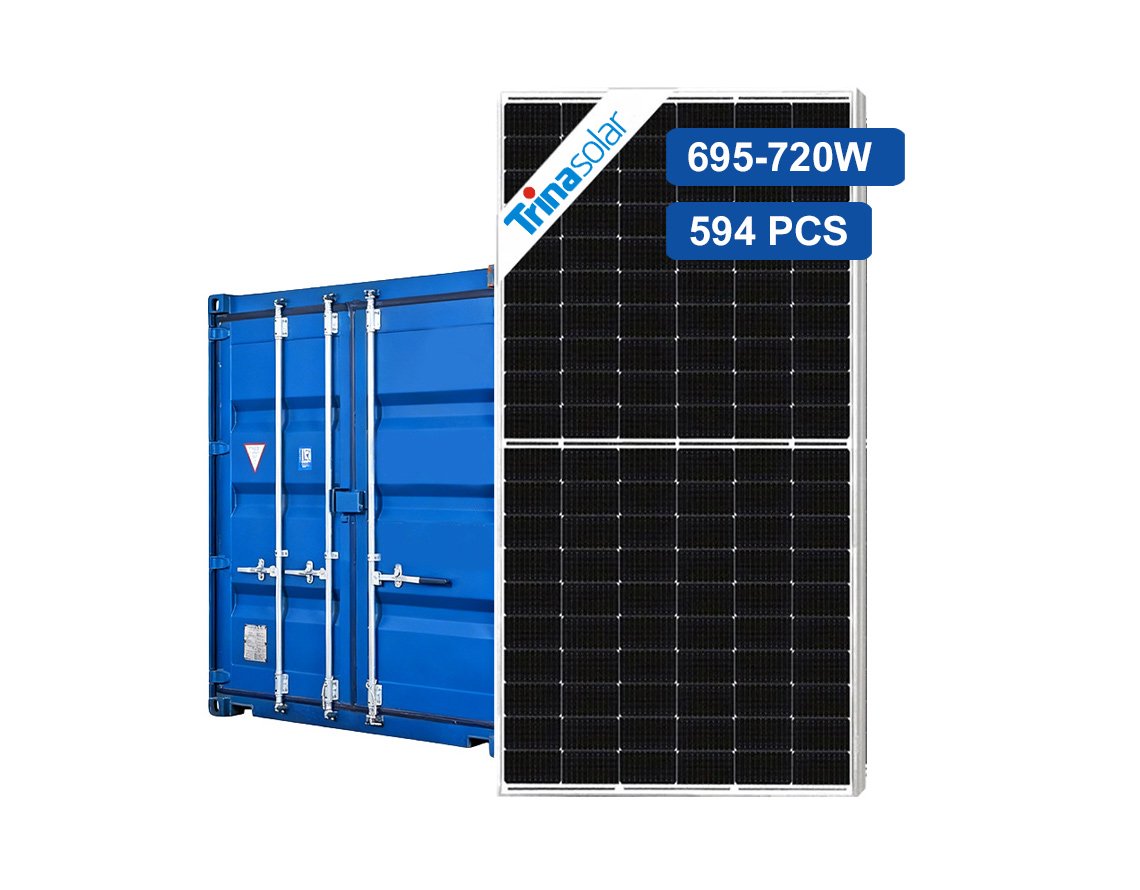

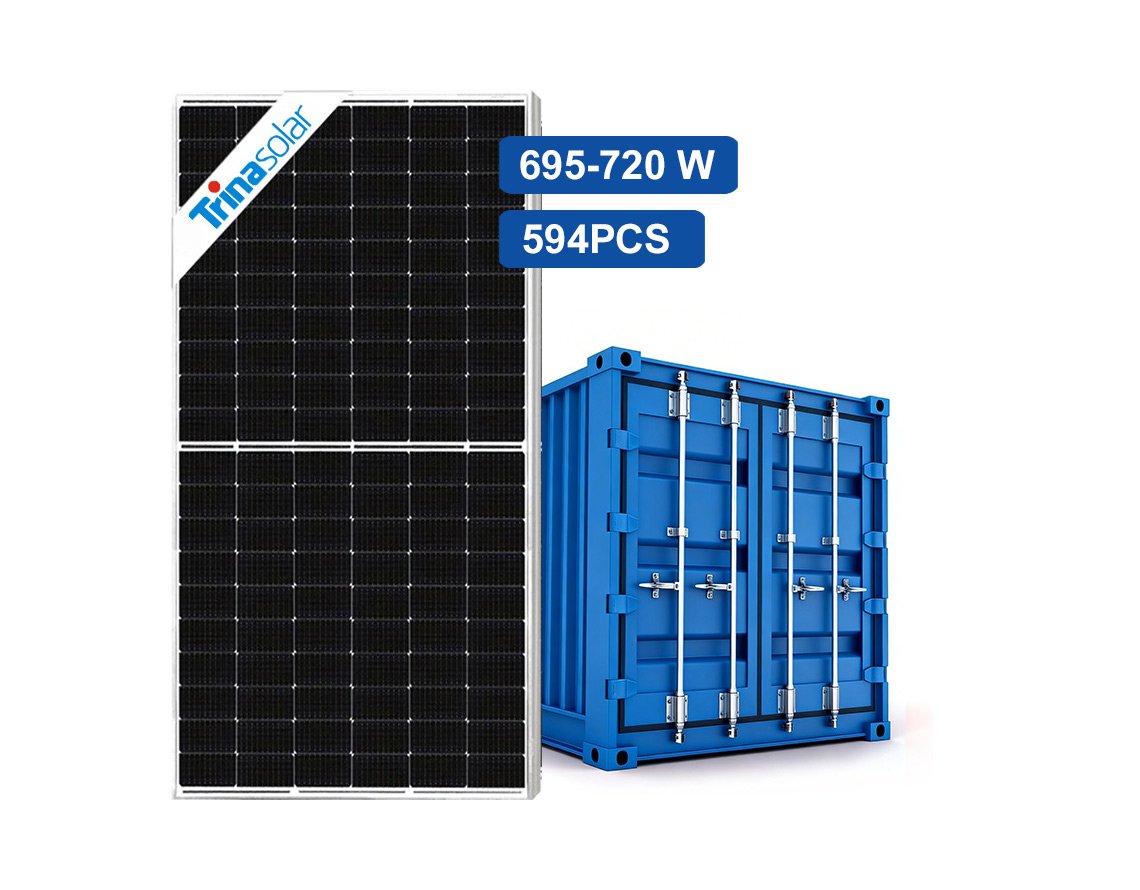

Trina Solar Panels 695W-720W Per Container 594 PCS
Model: TSM-NEG21C.20
Cell: N-Type monocrystalline
Power Range: 695-720W
Glass: dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of 594 pcs
Trina 695-720W Solar Panel By ContainerDescription
Trina 695W-720W Solar Panels pack unparalleled value into every module, each container with 594 pcs panels. With up to 23.2% efficiency on a robust bifacial, dual-glass platform and super multi-busbar technology, you enjoy superior light trapping, minimal series resistance, and extra rear-side gains of up to 30%. They have long-term performance in even the harshest environments, suitable for solar farms and solar projects.
If you need large solar panels in this range, feel free to contact us directly.
- Electrical Data (STC & NOCT)
- Electrical characteristics
- Mechanical Data
| Parameter | Unit | 695 Wp (STC) | 531 W (NOCT) | 700 Wp (STC) | 534 W (NOCT) | 705 Wp (STC) | 540 W (NOCT) | 710 Wp (STC) | 543 W (NOCT) | 715 Wp (STC) | 547 W (NOCT) | 720 Wp (STC) | 551 W (NOCT) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Tolerance, Pmax | W | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — |
| Maximum Power Voltage, Vmp | V | 40.3 | 37.9 | 40.5 | 38.0 | 40.7 | 38.3 | 40.9 | 38.5 | 41.1 | 38.7 | 41.3 | 38.8 |
| Maximum Power Current, Imp | A | 17.25 | 14.00 | 17.29 | 14.04 | 17.33 | 14.08 | 17.36 | 14.12 | 17.40 | 14.14 | 17.44 | 14.19 |
| Open-Circuit Voltage, Voc | V | 48.3 | 45.9 | 48.6 | 46.1 | 48.8 | 46.3 | 49.0 | 46.5 | 49.2 | 46.7 | 49.4 | 46.9 |
| Short-Circuit Current, Isc | A | 18.28 | 14.72 | 18.32 | 14.76 | 18.36 | 14.80 | 18.40 | 14.83 | 18.44 | 14.86 | 18.49 | 14.90 |
| Module Efficiency, ηm | % | 22.4 | — | 22.5 | — | 22.7 | — | 22.9 | — | 23.0 | — | 23.2 | — |
| Backside Gain | Total Equivalent Power Pmax (Wp) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) |
|---|---|---|---|---|---|
| 5% | 730 | 40.3 | 18.11 | 48.3 | 19.19 |
| 10% | 765 | 40.3 | 18.98 | 48.3 | 20.11 |
| 5% | 735 | 40.5 | 18.15 | 48.6 | 19.24 |
| 10% | 770 | 40.5 | 19.02 | 48.6 | 20.15 |
| 5% | 740 | 40.7 | 18.20 | 48.8 | 19.28 |
| 10% | 776 | 40.7 | 19.06 | 48.8 | 20.20 |
| 5% | 746 | 40.9 | 18.23 | 49.0 | 19.32 |
| 10% | 781 | 40.9 | 19.10 | 49.0 | 20.24 |
| 5% | 751 | 41.1 | 18.27 | 49.2 | 19.36 |
| 10% | 787 | 41.1 | 19.14 | 49.2 | 20.28 |
| 5% | 756 | 41.3 | 18.31 | 49.4 | 19.41 |
| 10% | 792 | 41.3 | 19.18 | 49.4 | 20.34 |
| Parameter | Specification |
|---|---|
| Solar Cells | N-type Monocrystalline |
| Number of Cells | 132 cells |
| Module Dimensions | 2384 × 1303 × 33 mm (93.86 × 51.30 × 1.30 inches) |
| Weight | 38.3 kg (84.4 lb) |
| Front Glass | 2.0 mm AR-coated, heat-strengthened glass |
| Encapsulant Material | POE / EVA |
| Back Glass | 2.0 mm heat-strengthened white-grid glass |
| Frame | 33 mm anodized aluminum alloy |
| J-Box | IP68 rated |
| Cables | Photovoltaic cable 4.0 mm² (0.006 in²); portrait: 350/280 mm (13.78/11.02 in); customizable length |
| Connector | TS4 PLUS / TS4 |
