Introduction
You switch on a water pump, and within seconds, your inverter trips is the best example of overload on inverter. That’s the most common problem in home and commercial use, where the inverter’s power demand exceeds the assigned power. More than just disrupting the power supply, the frequent overloads are the principal reason for shorter inverter lifespan and create heat in its components, and wear out the batteries. The most important concern an inverter user should know is why the inverter overloads and its most effective solution.
In this article, we will discuss how to check overload on an inverter and several overloading issues, to name some proven inverter overload problem solutions that are heavily backed by real-world data and engineering insights.
What is Inverter Overload?
Inverter overload is when the total load used by the electrical connected to it takes more power than what it safely delivers. It is the simple way of describing the overload, the inverter is supplying more current than its rated limit, and it turns off or trips the protection.
Branded manufacturers like the SunGrow, Huawei, Fronius, Growatt, and Deye are specific about what power you can overload electrically in their user manuals. For example, Growatt 5000TL can work up to 110% of the rated load continuously for 10 minutes from the inductive load. Deye electric hybrid inverters can load from 20%-30% surge load to 2-5 seconds can trip.
It may be continuous, as when too many devices are operated at a time or application startup current, like a refrigerator, a compressor, a water pump, when starts can have a starting high load, and this is the surge load. An off-grid inverter may shut automatically to protect the circuit, and the grid tie can reduce the output of the fault.
Knowing how overload behaves in the inverter system for different conditions can give the reliability and efficiency for installing power.
What Causes Overload on an Inverter?
Overload on the inverter occurs when the requirement of electricity exceeds what the inverter can deliver. The main reason is running too many or too overpowered appliances at once. Suppose a person is using a 2000 W air conditioner or using an induction cooker on a 1500 W inverter. These two are the big reasons behind why an inverter can have an overload problem. The inverter will try to supply current more than the predesigned capacity, resulting in heating up or an automatic shutdown because the internal circuits are protected.
Another common reason is the startup surges by inductive loads, like water pumps, refrigerators, or air compressors. During startup, these appliances can draw three to seven times more than their normal running current. As per the Growatt SPH 5000TL inverter data sheet, the inverter can take up to 110% of the rated load for up to 10 minutes, and 200% load for a few seconds before the protection is added on. Huawei, SunGrow, and Deye hybrid inverter models have a similar range of tolerance. However, if the surge continues for a long time, the system will still be put under stress.
The wrong wiring, loose terminals, and small-sized cables increase resistance that creates local heat, and a sudden rise in current occurs a few times. In some cases, the battery is weak or old, and it can’t supply that much current, which causes the inverter to see this as an overload. The environmental factors, which include every 10◦C rise in temperature above the rated temperature, reduce the inverter efficiency by 5% temporarily, making the inverter overload problems more frequent.
Real-World Impact Example:
A 5000W inverter operating at 45°C ambient temperature effectively becomes a 4500W inverter. If your load is 4800W, you’ll experience overload alarms even though you’re technically within the original rating. This is why proper ventilation and cooling are critical for preventing false overload conditions.
These are some reasons that are usually mixed in one real system. Knowing about the interaction before using any inverter overload problem solution, depending on the inverter size and maintenance advised, is essential.
How to Identify the Inverter Overload Problem
The first signs of being inverter overload are usually visual or audible since most models are designed to display it through a continuous beep, a flashing red LED, or an ‘inverter showing overload’ message on the display panel. In hybrid and off-grid systems, too, when the load crosses the inverter’s capacity, it can easily be identified because the inverter can either shut down or restart after five seconds to prevent component failure.
Sometimes, due to incorrect wiring, reversed polarity, or an internal sensor fault, users might come across ‘inverter showing overload without load‘, which can be really confusing. A field case of a 3 KW inverter in Kenya was constantly going into an overload state even though the load was not more than 60%. It was found that the neutral wire was damaged and thus, not due to excess demand.
Frequent alarms or ‘inverter all light blinking’ events show that the inverter is running right on its edge, and this cycle will require the users to replace the inverter and batteries before the end of their design life. The inverter’s maximum total current can be measured using a multimeter or a clip meter to confirm overcapacity. Each connected load is then disconnected at its positive wire successively to check whether the inverter is still showing the overload condition. Disconnecting any particular load to make the inverter work again indicates that the overcapacity was not the issue.
The table below shows “Inverter Overload Warning Signs & Actions”:
Common Scenarios: What Happens When You Overload an Inverter or Generator
When you overload an inverter, it can shut down or give a warning alarm, usually as per the model of the inverter. Most modern inverters protect their internal circuits and other components from overloading. When there is an overload on the inverter, the inverter can also isolate the load and prevent components such as IGBT or MOSFET from overheating. Let me give you an example that will make the concept clearer to you.
Suppose you have a 3000 W inverter, and you provide a load of around 4000 W to it. The inverter might have shut down instantly or might have shut down within 5-10 seconds, depending upon the threshold value of protection and its heat dissipation capacity.
The generator has a different scenario of operating and often lacks such rapid protection. When you overload a generator, it keeps working under stress, but the alternator windings get heated, and the insulation of the windings breaks down. The generator might also deform the rotor if the overload spans for too long, leading to complete failure of the generator in some cases.
When this happens, your generator will also have a burnt fuse, tripped breakers, and the output sockets will be damaged in almost all kinds of cases.
It is to be noted that some high-end inverter companies have various levels of programmable elements, like the overload tolerance ranges between 110%-150%. This helps their inverter to work without shutting down, even when there is an overload for a short time. Budget-friendly inverters do not have any flexibility of this sort and become prone to component failure even when there is an overload for a short time.
Step-by-Step Inverter Overload Problem Solution
To overcome the Inverter overload problem, you have to follow a structured diagnostic process instead of random trial and error. The first step you have to take is to switch off all the loads connected and wait for a few minutes for the inverter to cool down. Then start the inverter with only one or two essential appliances connected. If the inverter runs normally, then you can add the rest of the appliances slowly and monitor the watts.
You can use a digital watt meter or power analyzer to indicate that the total consumption is below the inverter’s rated capacity. You should avoid running together appliances with a high surge, such as pumps or microwaves, as it will overload for a short while. Sometimes, the combined surge current on startup can temporarily exceed the inverter tolerance. Produce – If the inverter still indicates an overload, then look carefully at all the wiring connections on a recent inverter installation.
Loose terminals of undersized cables can provide resistance and give a false overload signal. There are instances where the inverter shows overload without a load or when connected to the system. That happens because there is only a small leakage current or phantom load through the motor or utility. Reverse polarity or leakage to earth gives a phantom load, and producing loads with a clamp meter helps to isolate the circuit, providing overload measurement.
To reset the overload inverter, you often have to press the reset button to restart the inverter from its main input power. To stop the beep sound in the inverter, you have to ensure that the battery voltage is within a safe operating range (often 11-14 V for 12 V systems) and check if the cooling fans are operating properly.
Bypassing overload alarms repeatedly reset until the problem has been identified and solved will damage the MOSFETs or void the warranty.
How to Prevent Overload in Inverter Systems
Inverter system and battery installation are technical jobs and are carried out by skilled technicians. To overcome overload in an inverter system, it’s essential to carry out and maintain the following checks and do the following:
The inverter overload problem solution starts at the design stage. Plan and select the correct system rather than applying methods to recover from any errors or overload in the system later. The correct inverter sizing is one primary cause of long-term reliability. The rule is simple: choose an inverter that is rated 25-30% above your maximum expected peak load. Inverter’s circuitry can be damaged if power demand exceeds the inverter’s maximum capacity.

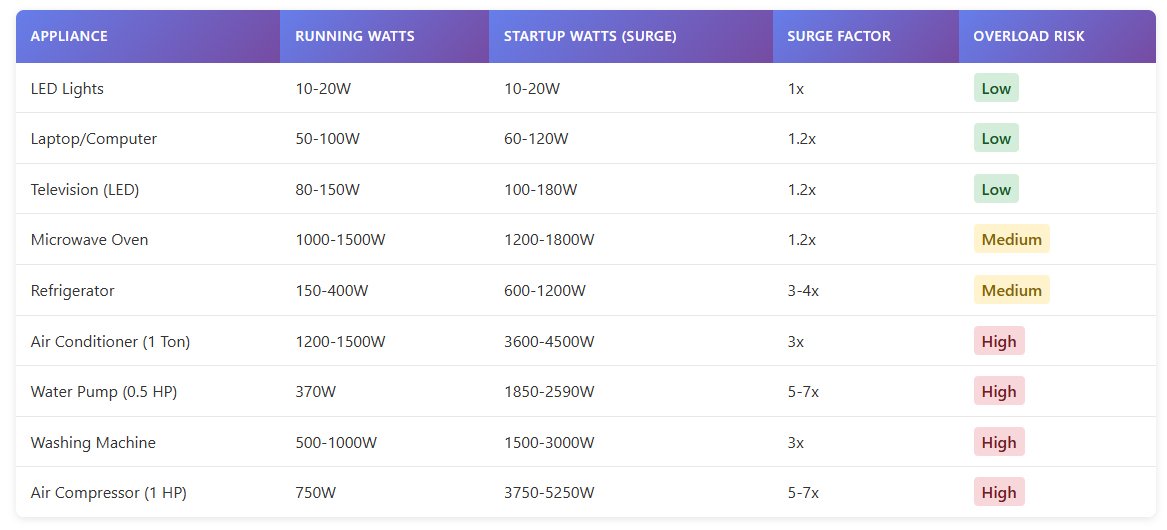

The inductive load, such as compressors, washing machines, or pumps, can have a surge current three to seven times higher than the running current, the peak load. The surge factor for calculation will prevent the inverter from tripping under your start-up load.
Another essential load matching criterion is efficient and robust batteries. The powerful LiFePO4 batteries, like those of the reputable brands that maintain the voltage constant and high voltage even under high draw. When the inverter load is high, but the battery voltage is stable, the inverter will not trip, and the fan will not start.

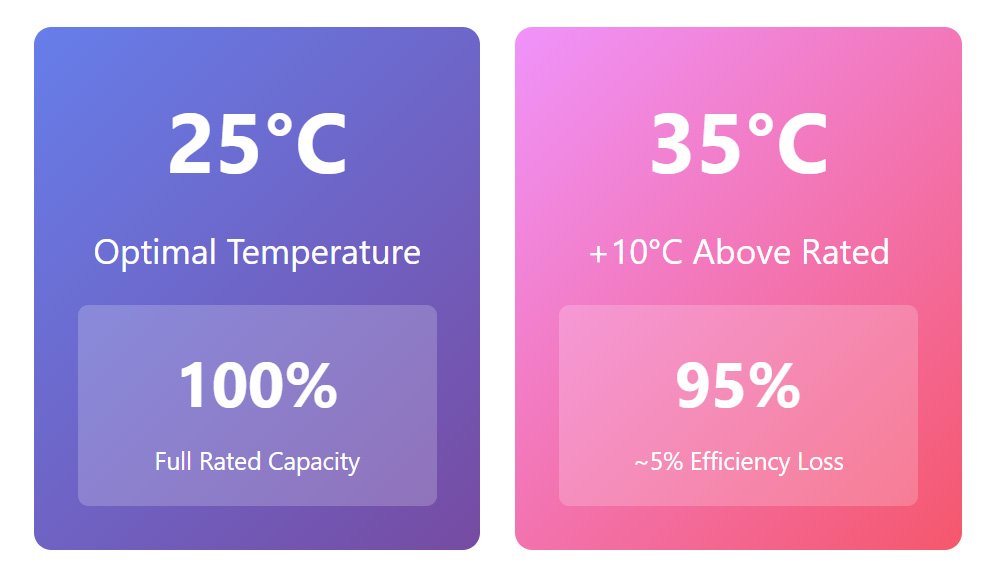

Proper preventive and predictive maintenance also prevents unnecessary overload alerts. Dust accumulation, vent blockage, and high ambient temperature all significantly reduce cooling efficiency. Inverters operate 10 degrees C above their rated ambient temperature, resulting in a 5% drop in efficiency. Some real field cases have revealed these statistics.
Along with the battery and inverter, temperature value is also a high load-related factor. The data logging facility of modern inverters like SunGrow, Huawei, Growatt, or Deye, along with a mobile application to track real-time load data logs of overload and an auto-disconnect feature, will help the user in avoiding inverter overloads. A commercial operator has experienced an 80% decrease in inverter overload incidents simply by choosing the right inverter-battery combination with good active temperature monitoring.
The table below shows the inverter overload prevention checklist:
Real-Life Case Studies and Comparison Table
It is always informative to know how an overload situation is handled by different types of users in real-life settings, along with comparing the details of the experience.
In a residential example, a homeowner seems to face inverter tripping with a 2kW inverter during the simultaneous running of a refrigerator and washing machine every time. The issue has been solved by replacing the 2kW inverter with a 3 kW inverter and using a LiFePO4 battery bank. The overload alarms are removed completely by upgrading the system and ensuring energy stability as well.
Similarly, in an industrial example, a small factory experienced constant inverter shutdown due to the usage of motorized machinery. The undersized unit has been replaced by a Hybrid Growatt 10 kW inverter and connected with a dynamic surge buffer. The change in details is observed and monitored for six months to record the number of overload events. And there are no overload events in 6 months.
The comparison below highlights verified inverter overload problem performance data across brands:
| Brand | Rated Capacity | Overload Tolerance | Surge Duration | Auto Shutdown |
| Deye 5 kW | 110% | 10 min | 200% for 5 sec | Yes |
| Growatt 5 kW | 120% | 10 min | 250% for 3 sec | Yes |
| Generic Model | 105% | 1 min | 150% for 2 sec | Partial |
HBOWA’s Role in Reliable Power Solutions
The HBOWA inverter’s overloading preventive measures depend on system design quality and the heavy-duty inputs to the system. The system design quality will lower the overloading issues to the inverter, and also a high-quality input will reduce the load-based increase to the inverter. Also, it reduces the repeated overloading issues to the inverter.
The HBOWA provides LiFePO4 batteries that are highly efficient and powerful, maintaining a stable voltage level. They provide a constant voltage when the power requirement is high and reduce the heavy load to the inverters. Thus, they decrease the load-related issues in the event of the overloading of the inverter.
Supposedly, the inverter brands like Growatt and Deye include a programmable overloading option with an additional surge protection intelligent device. Providing an option to the inverter at the user end to limit the overloading of the inverter to certain levels. An intelligent surge protection gadget will safeguard the case of any surges to recover the same levels of performance. Also, the high-efficiency inverters are designed by combining the LiFePO4 batteries with the inverters.
We also supply the tier-1 solar panels from Risen, Longi, Jinko, and Trina, making us further experts in the energy field. It offers a smoother input of solar energy into the system and reduces the unexpected spikes to handle in the panel. It also reduces the overloading issues to the inverters resulting from the unexpected input spikes. The combination of LiFePO4 batteries, high-efficiency inverter, and high-converting tier-1 panels will improve more effective overloading control and reduction of the commercial and residential requirements.
Conclusion
Overloaded inverters stop functioning, and sometimes they may function, but inefficiently, or they may cause damage. Surge current, undersized inverter, faulty wiring, and weak batteries are the most common reasons.
Understanding why inverter overload problems occur is essential. The solution to the inverter overload problem lies in using the right components of high quality. Using the correct size of inverter, taking care of surge factor and proper load distribution, and regular maintenance help in prevention.
High-quality components help in stabilization of energy flow, which leads to the chances of any overload, go down. HBOWA LiFePO4 batteries, Growatt inverters, and the solar panels with Tier-1 certifications need to be installed in order to have the best quality. The inverter and its limitations must be known today to prevent inverter breakdown in the future costly for your pocket.
