Solar Panel Voltage Calculator for Off-Grid and Grid-Tied Solar Systems

Introduction

A Solar Panel Voltage Calculator estimates the pressure that a solar system can produce under true working conditions. While watts denote the potential of an electrical device, voltage tells us about its safety and compatibility with the equipment.  Though the inverter and charge controller’s failure may happen due to many reasons, an incorrect voltage design is responsible for a significant part of failures. Most often, this is because the output voltage of the solar panel increases due to cold climates.  Off-grid systems are limited by charge controller specifications, battery design; grid-tied systems must operate within inverter input windows. Solar panel voltage calculation aims at limiting them before installation.

A voltage calculator for solar panels estimates the array’s maximum voltage based on the specifications of the solar panel used, its wiring, and its temperature.

What Is a Solar Panel Voltage Calculator and What Does It Actually Calculate?

A solar panel voltage calculator measures how voltage reacts at various system levels, which are often mistaken. Panel voltage describes the electrical features of a single module. The two most important voltages of a solar panel are open circuit voltage (Voc) and operating voltage (Vmp).

The voltage of a string is equal to the combination of the voltages of two or more panels connected in series, and the array voltage is the highest string voltage feeding directly into an inverter or controller. The distinction is very useful because in solar photovoltaic systems, voltage is added in series, like the total voltage calculator in basic circuit analysis.

The majority of calculators assess the maximum string or array voltage in cold situations, which determines the actual electrical risk. Nonetheless, they generally neglect to consider losses, aging, or parallel string imbalance. The practice of PV system usage works in the same way as the Logic of a Circuit Voltage Calculator, where a voltage that settles over the limit can damage the equipment even though the current is within range. It’s important to understand this scope before assuming any calculated output based on voltage.

Solar Panel Voltage Basics (Voc, Vmp, Cell Voltage)

What is Solar Panel Open-Circuit Voltage(Voc)?

Solar panel Voc refers to the maximum voltage that a module can generate when exposed to sunlight, but isn’t connected to any load. The number is given on every manufacturers datasheet under standard testing conditions and is measured with no current flowing. The solar panel’s open circuit voltage will always be more than that seen at full operation, simply because energy is not being drawn. This is the reason that specifications of the inverter and charge controller are based on Voc rather than working voltage. If the inverter Voc is exceeded, the damage will be permanent, even if the system looks correct with respect to wattage. Thus, the voc calculator always starts from the rated open-circuit voltage of the panel, and never from its nominal or advertised system voltage.

How Panel Cell Voltage Works

A solar panel comprises numerous silicon cells that are interconnected in a series configuration. The total voltage of the panel is composed of all the cell voltages, and each cell contributes its share to the total panel voltage. The precise value and its dependence on temperature and manufacturing design differ, but lie within a typical range for crystalline materials. When cells are connected in series, there is an increase in voltage, and current remains constant.  The principle is also applicable when panels are added to strings. When being taught how to calculate cell voltage, it is important to realise how the cells on their own affect the overall voltage of the system.

Solar Panel Voltage Calculation: Core Formulas Explained Simply

Calculating the voltage of a solar panel is straightforward and based on electrical principles, for instance, in most household and commercial Solar PV systems, the panels are wired in a series to achieve the voltage window necessary for the inverter/charge controller. Connecting the panels in this manner results in voltage addition and constant current.

The design of a string is the main factor influencing electrical risk, rather than the panel wattage. Regardless of whether a solar string calculator looks very simple or very complex, it is all based on this same logic.

Maximum voltage is determined using open-circuit voltage, not operating voltage.  This method simulates actual circumstances, where solar panels can be at peak voltage without giving out power. Temperature is a critical factor. Silicon voltage-generating efficiency increased at lower ambient temperature, and the open-circuit value rises.

That is the reason why instruments request the minimum expected daytime temperature.  This applies to rooftop systems as well as ground-mounted arrays.

Knowing how to calculate open circuit voltage correctly is the bedrock foundation of safe and compliant system design.

How Solar Panel Voltage Differs in Off-Grid vs Grid-Tied Systems

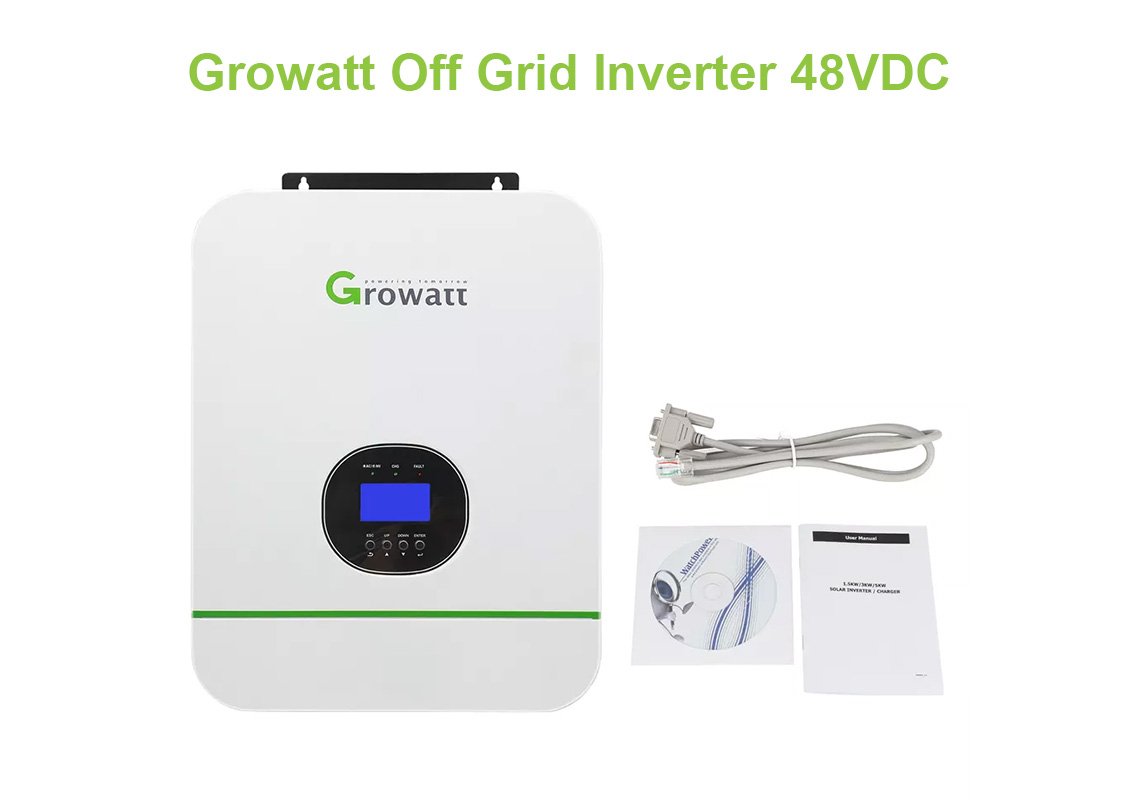

Design rules for voltage will differ according to how the system will connect. In many off-grid set-ups, the off-grid solar inverter and charge controller sit between the solar array and battery bank.  The maximum input voltage for the charge controller is fixed. Going above this can harm internal electronics even if only for a short period of time.

Sizing of the solar charge controller is voltage-first. The battery voltage will impact string design as the controller must work in a set MPPT tracking window to convert excess panel voltage into useful charging current. Many of the recent systems utilize solar controllers MPPT to effectively manage this, but the required accuracy in voltage limits.

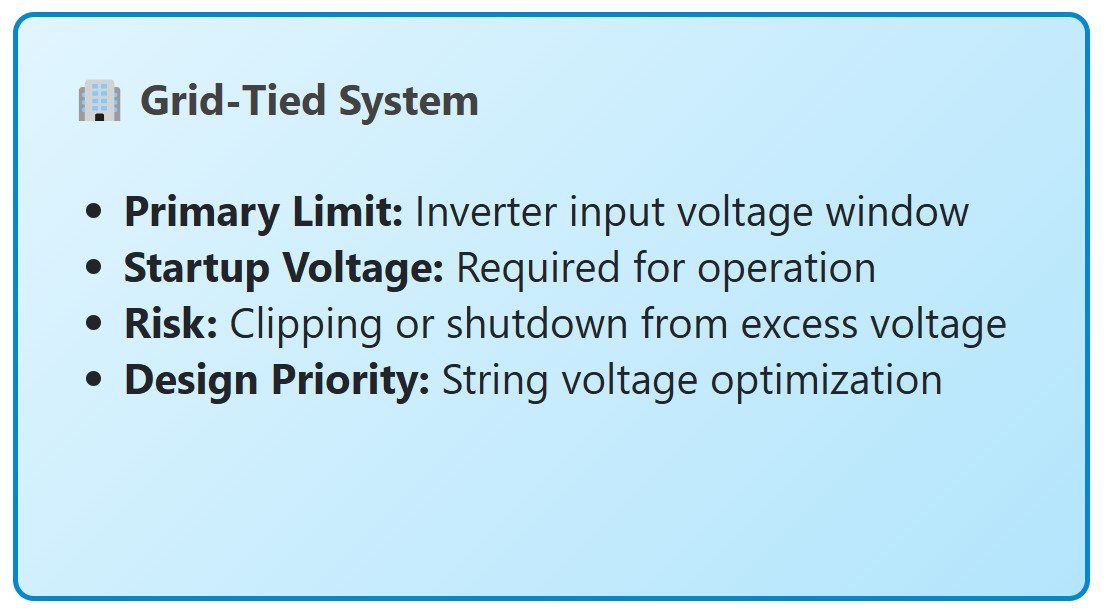

An alternative to off-grid is ‘grid-tied’ systems in which the PV inverter is connected to the PV array, and it synchronizes with the grid voltage. Every inverter has a specific startup and maximum-string-voltage window. The inverter may be unable to start reliably if the string voltage is too low. ​A clipping or shutdown occurs when the voltage is too high. Because hybrid solar inverter systems have both grid and battery voltage limits, string voltage planning is becoming even more essential.

Role of MPPT Charge Controllers in Voltage Calculation

An MPPT charge controller is not a voltage risk reducer but rather an energy concentrator, like a transformer. MPPT technology constantly monitors the panel voltage will produce maximum power, and the excess voltage is converted into additional charging current.  MPPT solar panels can handle changing conditions better than simpler systems. MPPT controllers, nevertheless, can accept only a limited voltage.

Each unit has a maximum input rating that must not be exceeded in any condition.  A solar mppt calculator or voltage calculator for a solar panel is useful to check the limit before installation.

The difference between PWM and MPPT control is voltage handling. It limits design flexibility as PWM controllers can pull the panel voltage down to that of the battery. With your current inverter and solar installations, the solar MPPT controller would allow you to string higher voltages, increasing efficiency and saving cables.  Nevertheless, devices like a 100/50-class controller with Victron SmartSolar 100/50 or Growatt 3000 examples are deliberately voltage-limited. Thus, determining the exact Voltage of the Solar Panel is the first step in selecting the best mppt solar charge controller.

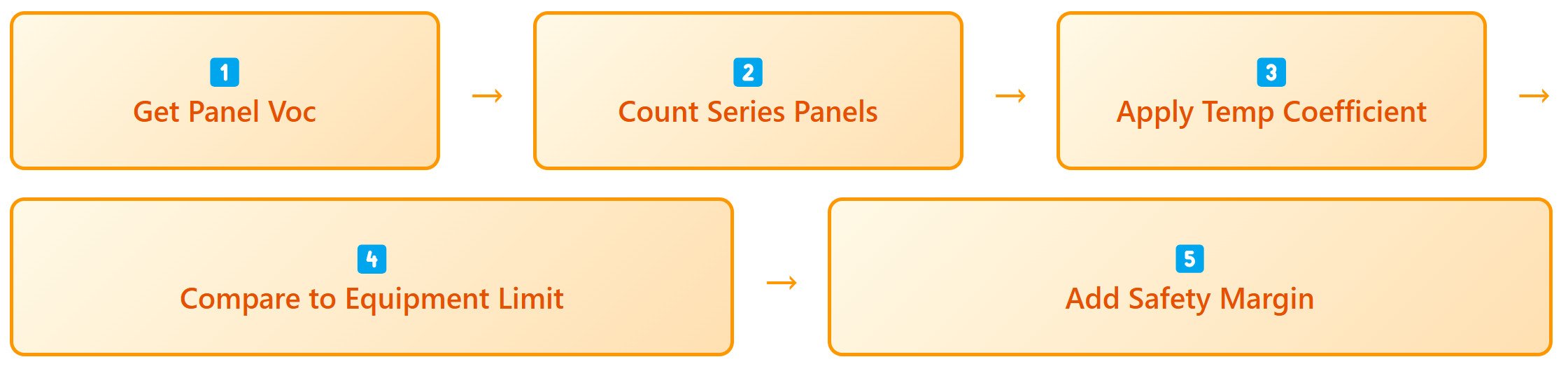

Step-by-Step: Using a Solar Panel Voltage Calculator Correctly

Ensuring the safety and efficiency of the system with a solar panel voltage calculator. To start, determine each panel’s Voc based on information from its datasheet. This voltage is the baseline voltage that will be adjusted for reality.

Check how many panels are connected in series. When the configuration is series, the voltage increases but the current remains the same, so that exact string counting is essential for a solar cell.  We must thus consider temperature effects.  As the temperature in the atmosphere decreases, the voltage rises. That is why most calculators need the lowest daytime temperature. After the determination of the theoretical maximum voltage, compare it with the inverter or charge controller’s maximum Voc rating.  This avoids the sensitivity of electronics to damage. In the end, allow for a safety margin to safeguard against happenings, aging, and other types of variations.

Using a solar panel PV calculator and a solar pv calculator online ensures that all factors are included in the calculations, and a solar panel calculator can manage complex configurations such as multi-string systems. By going through these steps, you build a strong design process that minimizes risk and maximizes system longevity.

Real-World Examples

Residential grid-tied installations that use, say, 550W solar panels. The series string design has a significant impact on maximum voltage. When we use fewer panels with higher wattages in a string, the string voltage may exceed the maximum voltage rating of the inverter. A string of solar panels calculator helps designers identify the optimal number of panels for the string so that voltage remains within limits and efficiency is maximum.  For instance, if you link five high-output modules in a single string, the total voltage could exceed the 600V inverter rating on cold winter mornings, even if the total wattage is acceptable.

Cold temperatures can cause voltage spikes that disrupt controller operation at off-grid locations, such as RV and cabin sites. By using a configuration calculator and an MPPT controller, the excess voltage in the solar panel system can be converted into current safely. The batteries don’t overvoltage, so they are charging efficiently. According to the datasheet of the Canadian 550W solar panel, real values of Voc and temperature coefficients are available in neutral data, allowing the designers to do accurate calculations at residential and off-grid conditions. Through the use of these tools, system designers can plan strings and select controllers that will reliably match environmental and system conditions.

Common Voltage Calculation Mistakes (That Damage Equipment)

A lot of system failures arise from rudimentary errors in Solar Panel Voltage Calculation. A common mistake is using the maximum power voltage (Vmp) instead of Voc, underestimating the potential for overvoltage, and damaging the inverter or the controller. One other common problem is the exclusion of temperature effects, as cold mornings increase panel voltage above rated levels. Using panels having different specifications in series without adjustment can lead to unbalanced voltage stress, causing shutdowns. In the end, some would like to think an MPPT controller can absorb overvoltage, but the inverter has strict Voc limits and can’t take infinite input.

Employing a solar panel wiring calculator or a solar panel voltage drop calculator allows designers to identify these pitfalls before installation, ensuring system reliability and safety over the long term.

Voltage Calculation vs Other Solar Calculators — What Each One Solves

Different solar calculators have different purposes, so knowing their focus helps avoid misuse. A solar panel voltage calculator is used to safeguard controllers and inverters by ascertaining the maximum string or array voltage.  The solar charge controller calculator will help to select the right controller size based on the maximum PV input and battery. In the meantime, the PV panel sizing calculator allows us to determine the number of panels that we require and their wattage, which implies energy demand, but not for voltage safety. When each tool is used for what it was intended for, it simplifies planning, reduces risk, and enables designers to incorporate series/parallel/MPPT.

A basic comparison table clarifies the distinctions to make it easier for the distributor and end-user to choose the right tool for every step in system design.

How to Match Voltage Results with Inverters & Charge Controllers

The next step after a solar panel voltage calculation is to make sure the inverter or charge controller is compatible. A good starting point would be to review your inverter’s maximum input voltage, which defines your PV string maximum. For an MPPT system of a controller, you must know the “voltage tracking window” of that controller. A controller can only convert excess voltage to current, but it cannot accept a voltage that exceeds the rated maximum. In real time, before considering current ratings, voltage compatibility is always considered first in practice because while overvoltage can instantly render electronics useless, current overdraw will cause a shutdown. According to your design, it helps with the integration of hardware elements and system sizing calculations. Implement the solar mppt controller in prescribed limits for safe and efficient energy conversion. HBOWA supplies compatible panels, inverters, and LiFePO₄ batteries in bulk, which help designers to plan entirely integrated systems.

Conclusion

If the voltage calculator of your solar panel is precise, it will be safe and will last longer. Calculating voltage isn’t merely a planning step; it protects equipment, improves efficiency, and prevents expensive failures. Though calculators provide vital checkpoints, they do not replace carefully examining the datasheet, as well as serial, parallel, and temperature aspects.  Confidence in every off-grid or grid-tied solar project is defined through the correct calculations by designers, installers, and end-users.
